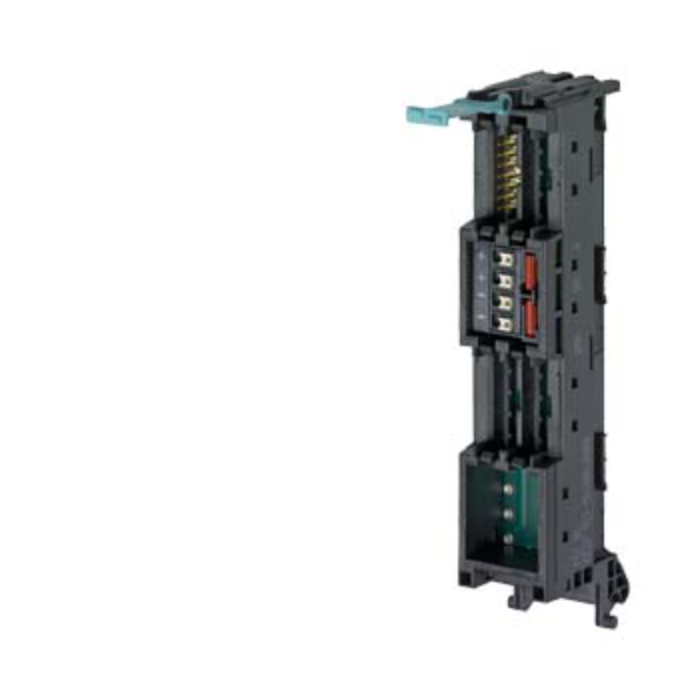

Siemens S7-1500 Front connector modules, 2 A digital modules, 16-pin; power supply via push-in
Pricing available on request
Description:
- This front connector module features a 1×16-pole IDC connector and Push-In terminals for potential supply (2×L+, 2×M).
- It’s optimized for digital output modules in the S7-1500 series that require up to 3 A total current, making it ideal for actuators or devices with higher power demands.
Specifications:
- Target System: SIMATIC S7-1500.
- Connector Type: 1×16-pole IDC connector.
- Terminal Type: Push-In (2×L+, 2×M).
- Rated Voltage: 24 V DC.
- Max Voltage: 60 V DC.
- Rated Current: 1 A per contact.
- Max Total Current: 3 A (horizontal mounting).
- Conductor Cross-Section: 0.25–1.5 mm² (with end sleeves).
- Wire End Sleeve Type: DIN 46228-1 / DIN 46228-4.
- Stripped Length: 8–9 mm.
- Max Wire Length: 30 m (to terminal module).
- Operating Temp: 0 °C to +60 °C.
- Storage Temp: –40 °C to +70 °C.
- Mounting: Direct (no end cover plate required).
- Pollution Degree / Overvoltage Cat: 2 / 2.
- Certification: cULus approved.
- Reference Code: XG (IEC 81346-2).
- Net Weight: ~99 g.
| SKU | 6ES7921-5AJ00-0AA0 |
|---|---|
| Brand | Siemens |
