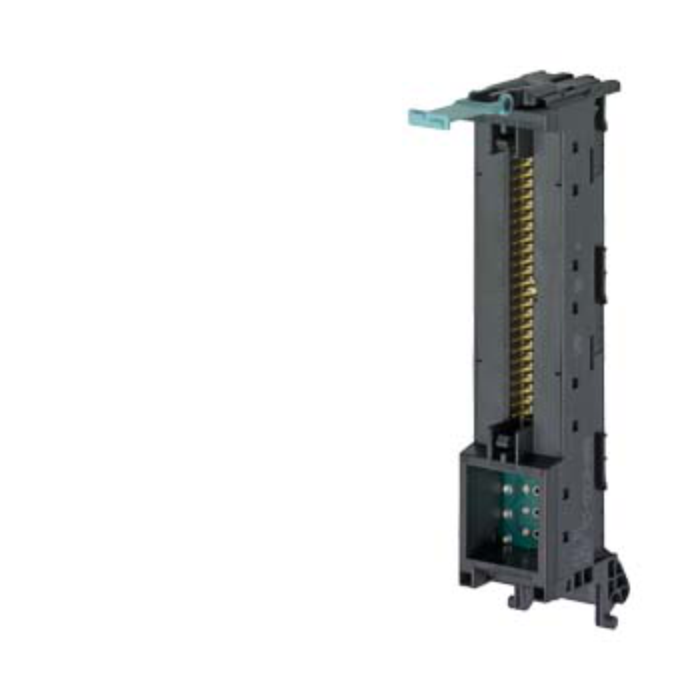

Siemens S7-1500 Front connector modules, analog modules, 50-pin
Pricing available on request
Description:
- This front connector module is tailored for analog 40-pole I/O modules in the S7-1500 series, featuring a single 50-pole IDC connector.
- It relies on voltage supply via the module’s feed element, eliminating the need for external L+/M terminals.
- This design streamlines analog signal wiring and is ideal for compact control cabinet layouts.
Specifications:
- Target System: SIMATIC S7-1500.
- Connector Type: 1×50-pole IDC connector.
- Terminal Type: No external terminals (powered via module).
- Rated Voltage: 24 V DC.
- Max Voltage: 60 V DC.
- Rated Current: 1 A per contact.
- Max Wire Length: 30 m (to terminal module).
- Operating Temp: 0 °C to +60 °C.
- Storage Temp: –40 °C to +70 °C.
- Mounting: Direct (no end cover plate required).
- Pollution Degree / Overvoltage Cat: 2 / 2.
- Certification: cULus approved.
- Reference Code: XG (IEC 81346-2).
- Net Weight: ~99 g.
| SKU | 6ES7921-5CK20-0AA0 |
|---|---|
| Brand | Siemens |
