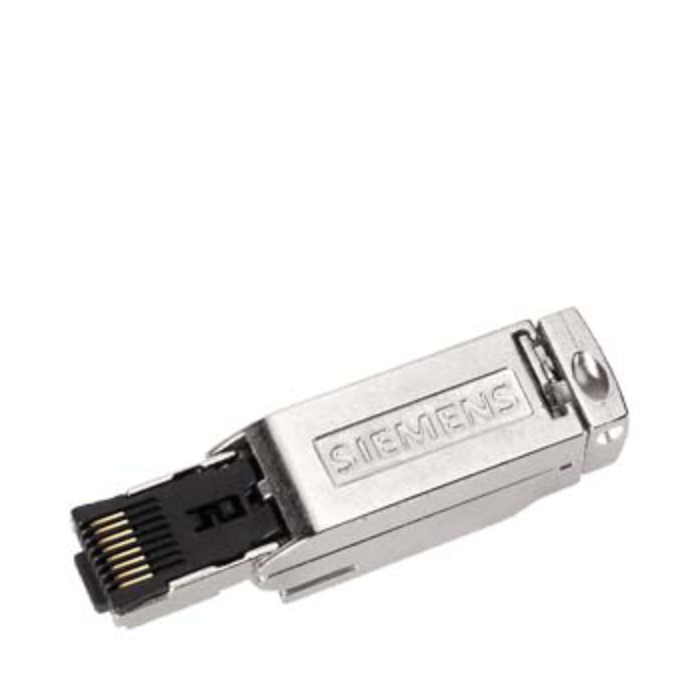

Siemens S7-1500 IE FC RJ45 Plug 4x2, 1 pack = 10 units
Pricing available on request
Description:
- This is a Cat6-rated RJ45 plug with a 180° cable outlet, built for Fast Connect (FC) assembly using 4x2 twisted pair cables (AWG24).
- It supports 10/100/1000 Mbit/s Ethernet and is supplied in a pack of 10 units, making it ideal for bulk installations across control cabinets, field devices, and SCALANCE switches.
Specifications:
- Connector Type: RJ45 plug, 180° outlet.
- Cable Compatibility: IE FC TP cable 4x2 (AWG24).
- Assembly Method: Fast Connect cut-and-clamp system.
- Supported Speeds: 10/100/1000 Mbit/s.
- Enclosure Material: Metal.
- Reusability: Up to 10 times.
- Cable Diameter Range: 6.5–8 mm.
- Conductor Cross-Section: 0.21–0.33 mm².
- PoE / PoE+ Support: Yes.
- Operating Temp Range: –40 °C to +85 °C.
- Protection Class: IP20.
- Dimensions (W×H×D): 13.7 × 16 × 55 mm.
- Weight: ~35 g.
- Packaging: 10 plugs per pack.
| SKU | 6GK1901-1BB11-2AB0 |
|---|---|
| Brand | Siemens |
