Specifications:

• suitability for use: Standard cable with rigid cores for fast installation.
• cable designation: 2YY (ST) CY 2x2x0,64/1,5-100 GN SF/UTP.

electrical data:

• attenuation factor per length.
• at 10 MHz / maximum: 0.052 dB/m.
• at 100 MHz / maximum: 0.195 dB/m.
• Impedance.
• at 1 MHz ... 100 MHz: 100 Ω.
• relative symmetrical tolerance.
• of the characteristic impedance at 1 MHz … 100 MHz: 15 %.
• near-end crosstalk per length.
• at 1 MHz ... 100 MHz: 0.5 dB/m.
• transfer impedance per length / at 10 MHz: 10 mΩ/m.
• loop resistance per length / maximum: 115 mΩ/m.
• operating voltage.
• RMS value: 80 V.
• NVP value in percent: 69 %.

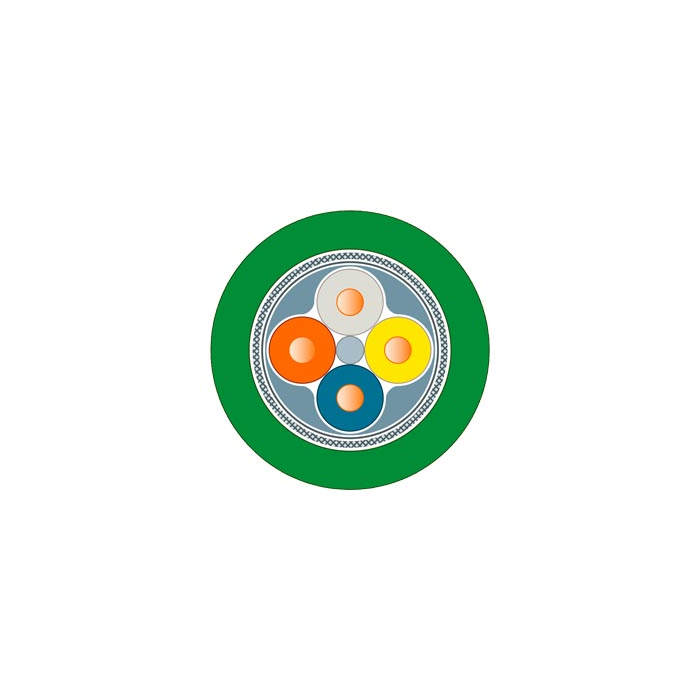

mechanical data:

• number of electrical cores: 4.
• design of the shield: Overlapped aluminum-clad foil, sheathed in a braided screen of tin-plated
  copper wires.
• type of electrical connection / FastConnect: Yes.
• core diameter.
• of AWG22 insulated conductor: 0.64 mm.
• outer diameter.
• of inner conductor: 0.64 mm.
• of the wire insulation: 1.5 mm.
• of the inner sheath of the cable: 3.9 mm.
• of cable sheath: 6.5 mm.
• symmetrical tolerance of the outer diameter / of cable sheath: 0.2 mm.
• material.
• of the wire insulation: polyethylene (PE).
• of the inner sheath of the cable: PVC.
• of cable sheath: PVC.
• Colour.
• of the insulation of data wires: white/yellow/blue/orange.
• of cable sheath: green.
• bending radius.
• with single bend / minimum permissible: 19.5 mm.
• with multiple bends / minimum permissible: 49 mm.
• tensile load / maximum: 150 N.
• weight per length: 61 kg/km.

ambient conditions:

• ambient temperature.
• during operation: -40 ... +75 °C.
• during storage: -40 ... +75 °C.
• during transport: -40 ... +75 °C.
• during installation: -40 ... +60 °C.
• note: Electrical properties measured at 20 °C, tests according to DIN VDE 0472.
• fire behaviour: flame resistant according to IEC 60332-3-24 (Category C) and UL 1685 (CSA FT 4).
• class of burning behaviour / according to EN 13501-6: Eca.
• chemical resistance.
• to mineral oil: oil resistant according to IEC 60811-2-1 (4 h / 70°C).
• to grease: Conditional resistance.
• to water: conditional resistance.
• radiological resistance / to UV radiation: resistant.

product features, product functions, product components / general:

• product feature.
• halogen-free: No.
• silicon-free: Yes.
• wire length / for Industrial Ethernet.
• with 100BaseTX: 100 m.

standards, specifications, approvals:

• UL/ETL listing / 300 V Rating: Yes; c(ETL)us / CMG / (ETL)us PLTC/ ITC / Sun Res.
• UL/ETL style / 600 V Rating: Yes; cRUus AWM 21694 AWM I A/B 60°C 600V FT2.
• certificate of suitability.
• EAC approval: Yes.
• CE marking: Yes.
• RoHS conformity: Yes.
• standard for structured cabling: Cat5e.
• Marine classification association.
• American Bureau of Shipping Europe Ltd. (ABS): No.
• French marine classification society (BV): No.
• Det Norske Veritas (DNV): No.
• Germanische Lloyd (GL): No.
• Lloyds Register of Shipping (LRS): No.
• Nippon Kaiji Kyokai (NK): No.
• Polski Rejestr Statkow (PRS): No.
• reference code.
• according to IEC 81346-2: WG.
• according to IEC 81346-2:2019: WGB.
