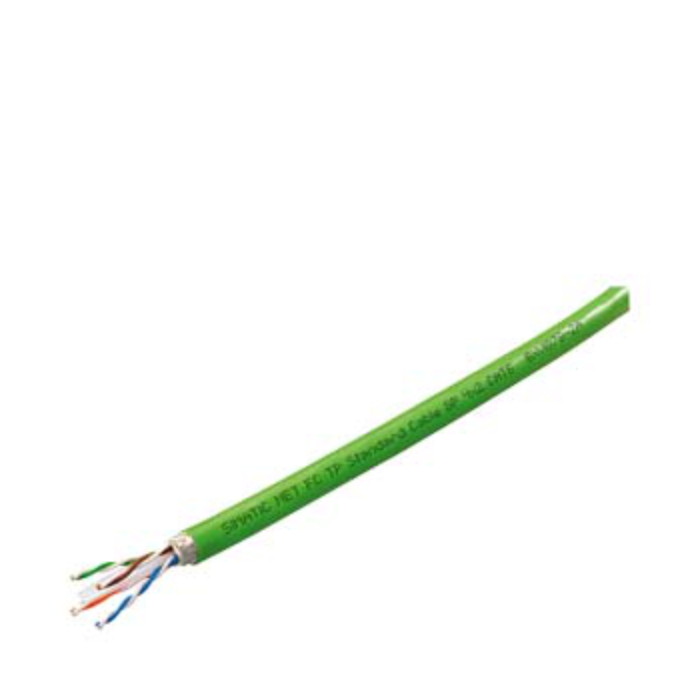

IE FC TP Standard Cable 4x2 by meter, Minimum Order Quantity 20m
Pricing available on request
Description:
- This is a CAT6A-rated, 8-core twisted pair cable with AWG22 solid conductors, sold by the meter for custom-length installations.
- It’s optimized for Fast Connect (FC) assembly, making it ideal for structured cabling between RJ45 plugs, modular outlets, and SCALANCE switches in demanding automation networks.
Specifications:
- Cable Type: IE FC TP Standard Cable GP 4x2 (AWG22).
- Category: CAT6A.
- Conductor Type: Solid (rigid).
- Conductor Size: AWG22 (0.64 mm diameter).
- Shielding: Foil + braided copper screen.
- Outer Diameter: 9.6 mm.
- Impedance: 100 Ω ±5% (1–100 MHz).
- Max Length (per reel): 1000 m.
- Min Order Quantity: 20 m.
- Bending Radius: 38 mm (single); 80 mm (multiple).
- Tensile Load: 180 N.
- Flame Resistance: IEC 60332-1.
- UV Resistance: Yes.
- Oil Resistance: IEC 60811-2-1 compliant.
- Operating Temp: –40 °C to +80 °C.
- Ethernet Support: 100BaseTX / 1000BaseT (up to 90 m).
- PoE / PoE+ Support: Yes.
- Fast Connect Compatible: Yes
| SKU | 6XV1870-2E |
|---|---|
| Brand | Siemens |
