Siemens S7-1500 IE FC TP Standard Cable GP 4x2, AWG24, for connection to IE FC RJ45 Plug 4x2
Pricing available on request
Description:

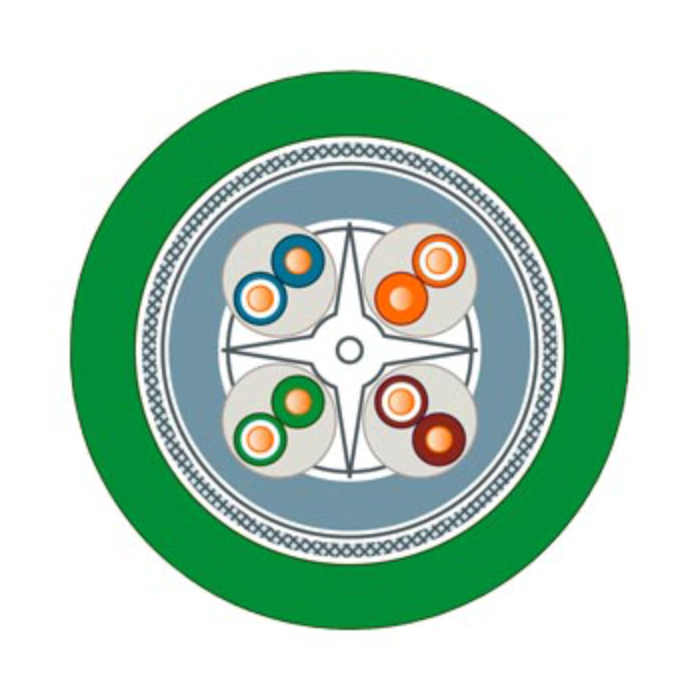

- This is a shielded, 8-core twisted pair CAT6A cable with AWG24 solid conductors, optimized for Fast Connect (FC) assembly.
- It is old by the meter and supports 100BaseTX, 1000BaseT, and 10GBaseT Ethernet, making it ideal for structured cabling between RJ45 plugs, switches, and field devices.
Specifications:
- Cable Type: IE FC TP Standard Cable GP 4x2 (AWG24).
- Category: CAT6A.
- Conductor Type: Solid (rigid).
- Shielding: Foil + braided copper screen.
- Outer Diameter: 8 mm.
- Bending Radius: 24 mm (single), 40 mm (multiple).
- Tensile Load: 100 N.
- Flame Resistance: IEC 60332-3-24 (Category C).
- UV & Oil Resistance: Yes (IEC 60811-2-1 compliant).
- Operating Temp: –40 °C to +85 °C.
- Ethernet Support: 100BaseTX: 100 m, 1000BaseT: 90 m, 10GBaseT: supported.
- PoE / PoE+ / PoE++ Support: Yes.
- Fast Connect Compatible: Yes.
- Weight: ~74.5 kg/km.
| SKU | 6XV1878-2A |
|---|---|
| Brand | Siemens |
