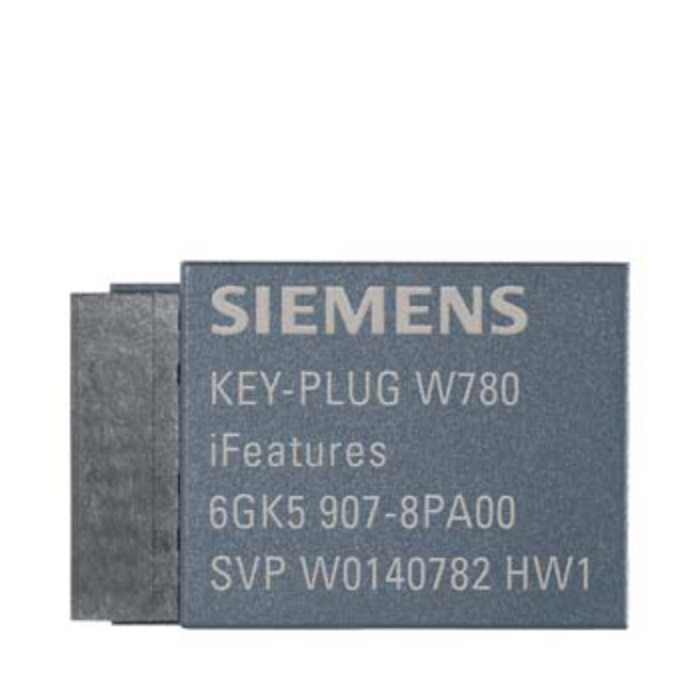

Siemens S7-1500 KEY-PLUG W780 IFeature
Pricing available on request
Description:
- The KEY-PLUG W780 is a removable data storage module that activates Siemens' proprietary iFeatures in SCALANCE W series IWLAN devices.
- It enables enhanced wireless functionality such as deterministic communication, redundant transmission, and real-time roaming, while also storing configuration and application data for quick device replacement in case of failure.
Specifications:
- Form Factor: Plug-in module (KEY-PLUG).
- Storage Capacity: 256 MiB.
- Compatible Devices: SCALANCE W740/W730/W770/W780 series.
- Enabled Features: iPCF, iPCF-MC, iREF, iPRP.
- Operating Temp: –40 °C to +75 °C.
- Protection Class: IP20.
- Dimensions (W×H×D): 24.3 × 17 × 8.1 mm.
- Weight: ~5 g.
- Identification Link Support: Yes (IEC 61406-1:2022).
- Environmental Declaration: EPD available.
- Global Warming Potential: 1264 kg CO₂ eq (total lifecycle).
| SKU | 6GK5907-8PA00 |
|---|---|
| Brand | Siemens |
