General information:

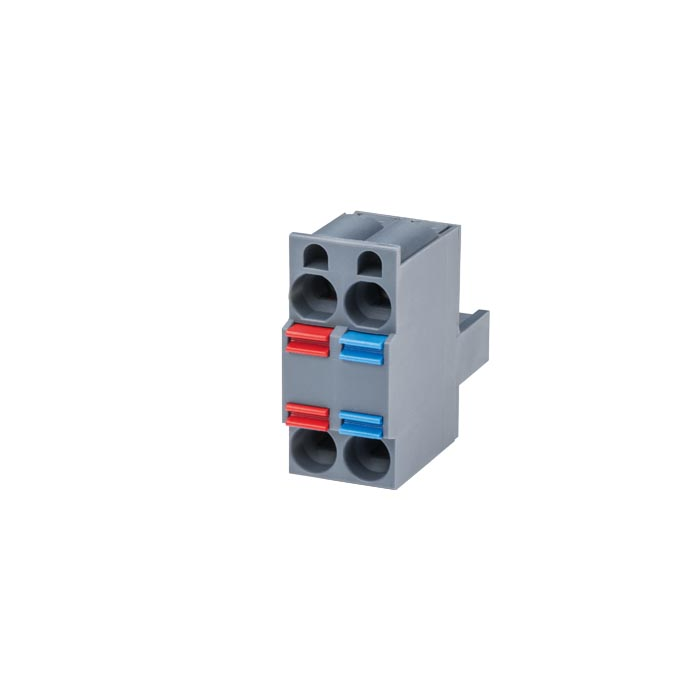

• Product type designation: Connector, female, 2x2-pin.

Installation type/mounting:

• Wall mounting/direct mounting: Yes; can be plugged into SIMATIC HMI device.

Supply voltage:

• Type of supply voltage: DC.
• Rated value (DC): 24 V.

Interfaces:

• HMI-side interface.
• Number of pins HMI-side: 2; Outgoing side jumpered internally, color-coded.
• Device-side interface.
• Number of pins device-side: 4; Female, spring-loaded terminals 0.75 mm².

Standards, approvals, certificates:

• CE mark: Yes.
• RoHS conformity: Yes.
• China RoHS compliance: Yes.

Ambient conditions:

• Ambient temperature during storage/transportation.
• min.: -20 °C.
• max.: 70 °C.

Mechanics/material:

• Design of housing: plastic.

Dimensions:

• Width: 10 mm.
• Height: 22 mm.
• Thickness: 25 mm.
