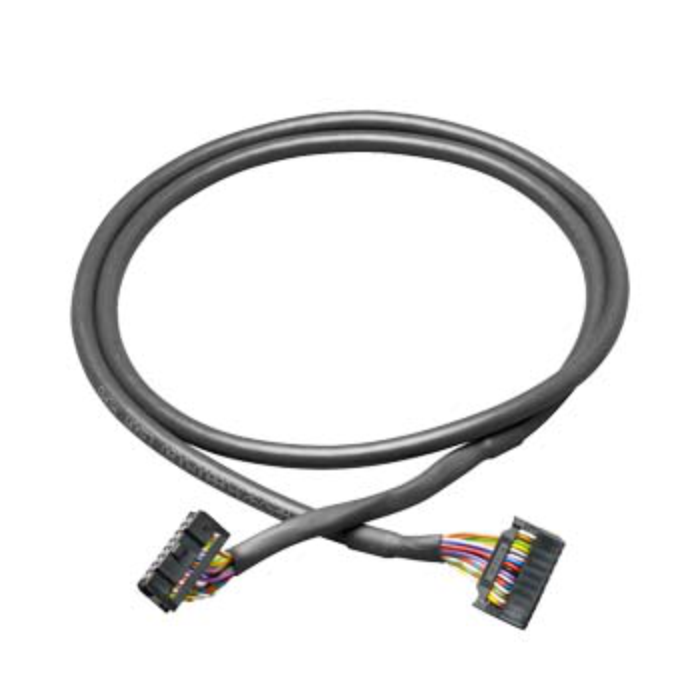

Siemens S7-1500 Pre-assembled round cable, 16-pole, 0.14 mm², unshielded, 1.0m
Pricing available on request
Description:
- This is a pre-assembled, unshielded round cable with IDC connectors on both ends, optimized for digital signal transmission.
- With a length of 1.0 meter, it offers a plug-and-play solution for connecting SIMATIC front connector modules to connection modules in control cabinets.
Specifications:
- Cable Type: Unshielded round cable.
- Length: 1.0 m.
- Connector Type: IDC (16-pole).
- Number of Conductors: 16.
- Conductor Cross-Section: 0.14 mm².
- Cable Diameter: 6.5 mm.
- Cable Sheath Material: PVC.
- Cable Colour: Black.
- Voltage Rating: 24 V DC (rated), 60 V DC (max).
- Temperature Range (Operation): 0 °C to +60 °C.
- Temperature Range (Storage): –30 °C to +70 °C.
- Use Case: Digital signal transmission only.
- Compatibility: SIMATIC S7-300 / S7-1500.
- Net Weight: ~125 g.
- Reference Code: WG (IEC 81346-2).
- cULus Approval: Not certified.
| SKU | 6ES7923-0BB00-0CB0 |
|---|---|
| Brand | Siemens |
