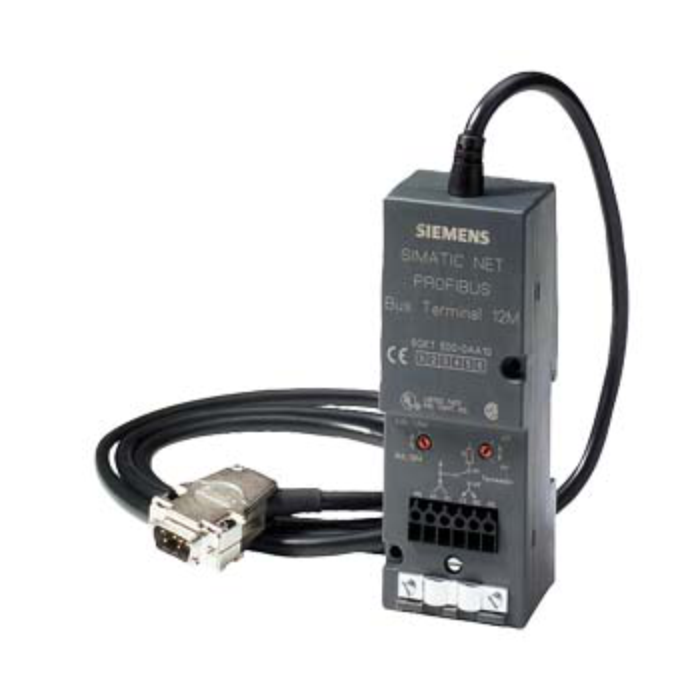

Siemens S7-1500 PROFIBUS Bus terminal 12M
Pricing available on request
Description:
- This is a DIN-rail mountable PROFIBUS bus terminal supporting transfer rates from 9.6 kbit/s to 12 Mbit/s.
- It features screw terminal connections for PROFIBUS cables and includes a 1.5 m plug-in cable for quick deployment.
- The unit is optimized for stationary installations and supports hazardous area certifications.
Specifications:
- Interface: PROFIBUS RS485.
- Transfer Rate: 9.6 kbit/s to 12 Mbit/s.
- Cable Connection Type: Screw terminals.
- Mounting: 35 mm DIN rail.
- Dimensions (W×H×D): 50 × 138 × 53 mm.
- Weight: ~351 g.
- Enclosure Material: Plastic.
- Cable Included: 1.5 m plug-in PROFIBUS cable.
- Protection Class: IP20.
- Operating Temperature: –25 °C to +60 °C.
- Hazardous Zone Certification: Ex nA IIC T6 Gc (GB3836.1, GB3836.8).
- Standards Compliance: IEC 61406-1:2022 (Identification Link).
| SKU | 6GK1500-0AA10 |
|---|---|
| Brand | Siemens |
