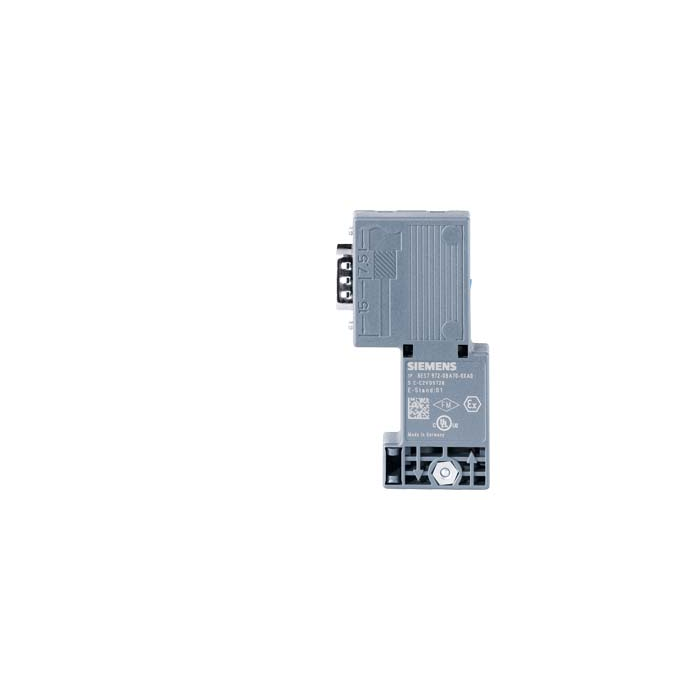

Siemens S7-1500 PROFIBUS FastConnect, With programming device interface
Pricing available on request
Description:
- The product type designation is PROFIBUS connection.
- PROFIBUS bus connector, RS 485, Fast Connect, no programming port, 90°.
- Simatic DP, 90° cable outlet, 15.8 x 72.2 x 36.4 mm (W x H x D), insulation displacement method FastConnect, no PG socket. Connection plug for PROFIBUS up to 12 Mbit/s.
Specifications:
- suitability for use: For connecting PROFIBUS stations to the PROFIBUS bus cable.
transfer rate:
- transfer rate / with PROFIBUS DP: 9.6 kbit/s ... 12 Mbit/s.
interfaces:
- number of electrical connections:
- for PROFIBUS cables: 2.
- for network components or terminal equipment: 1.
- type of electrical connection:
- for PROFIBUS cables: Integrated insulation displacement terminals for 2-core PB FC installation cables.
- for network components or terminal equipment: 9-pin sub D connector.
- type of electrical connection / FastConnect: Yes.
mechanical data:
- design of terminating resistor: Resistor combination integrated and connectable via slide switch. Isolation function: When resistor is connected, outgoing bus is disconnected.
- material / of the enclosure: plastic.
- locking mechanism design: Screwed joint.
design, dimensions and weights:
- type of cable outlet: 90 degree cable outlet.
- width: 15.8 mm.
- height: 72 mm.
- depth: 36.4 mm.
- net weight: 45 g.
ambient conditions:
- ambient temperature.
- during operation: -25 ... +60 °C.
- during storage: -40 ... +70 °C.
- during transport: -40 ... +70 °C.
- protection class IP: IP20.
product features, product functions, product components / general:
- product feature.
- silicon-free: Yes.
- product component.
- PG connection socket: Yes.
- strain relief: Yes.
| SKU | 6ES7972-0BB70-0XA0 |
|---|---|
| Brand | Siemens |
