Specifications:

• suitability for: For use in the food, beverages and tobacco industries.
• cable designation: 02YSY (ST) C2Y 1x2x0,64/2,55-150 KF 40.

electrical data:

• attenuation factor per length.
• at 9.6 kHz / maximum: 0.0025 dB/m.
• at 38.4 kHz / maximum: 0.004 dB/m.
• at 4 MHz / maximum: 0.022 dB/m.
• at 16 MHz / maximum: 0.042 dB/m.
• Impedance.
• rated value: 150 Ω.
• at 9.6 kHz: 270 Ω.
• at 38.4 kHz: 185 Ω.
• at 3 MHz … 20 MHz: 150 Ω.
• relative symmetrical tolerance.
• of the characteristic impedance at 9.6 kHz: 10 %.
• of the characteristic impedance at 38.4 kHz: 10 %.
• of the characteristic impedance at 3 MHz … 20 MHz: 10 %.
• loop resistance per length / maximum: 110 mΩ/m.
• shield resistance per length / maximum: 9.5 Ω/km.
• capacity per length / at 1 kHz: 28.5 pF/m.
• operating voltage.
• RMS value: 80 V.

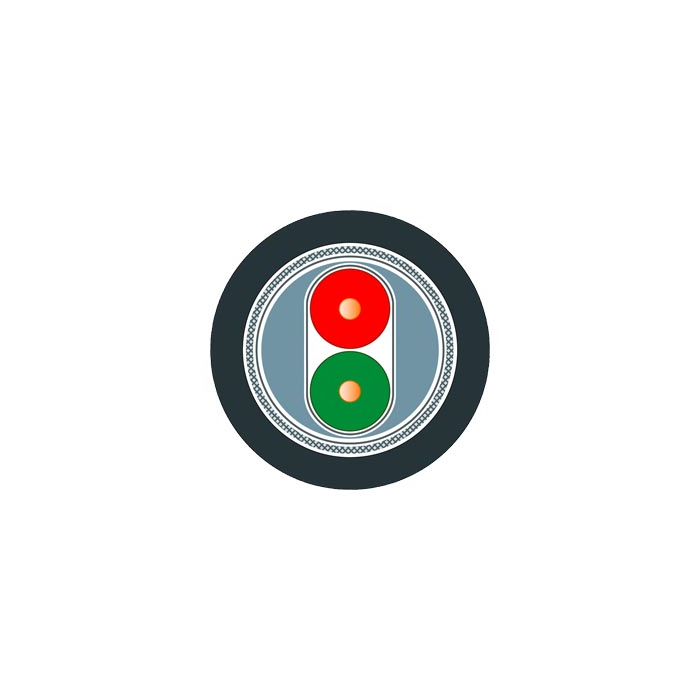

mechanical data:

• number of electrical cores: 2.
• design of the shield: Overlapped aluminium-clad foil, sheathed in a braided screen of tin-plated copper wires.
• type of electrical connection / FastConnect: Yes.
• outer diameter.
• of inner conductor: 0.65 mm.
• of the wire insulation: 2.55 mm.
• of the inner sheath of the cable: 5.4 mm.
• of cable sheath: 8 mm.
• symmetrical tolerance of the outer diameter / of cable sheath: 0.4 mm.
• material.
• of the wire insulation: polyethylene (PE).
• of the inner sheath of the cable: PVC.
• of cable sheath: PE; Outer cover made of PE is especially suitable for the food processing industry.
• Colour.
• of the insulation of data wires: red/green.
• of cable sheath: Black.
• bending radius.
• with single bend / minimum permissible: 30 mm.
• with multiple bends / minimum permissible: 60 mm.
• tensile load / maximum: 100 N.
• weight per length: 67 kg/km.

ambient conditions:

• ambient temperature.
• during operation: -40 ... +60 °C.
• during storage: -40 ... +60 °C.
• during transport: -40 ... +60 °C.
• during installation: -40 ... +60 °C.
• note: Electrical properties measured at 20 °C, tests according to DIN 47250 part 4 respectively DIN VDE 0472 .
• fire behaviour: inflammable.
• class of burning behaviour / according to EN 13501-6: Fca.
• chemical resistance.
• to mineral oil: oil resistant according to IEC 60811-2-1 (4h/70°C).
• to grease: Conditional resistance.
• to water: conditional resistance.
• radiological resistance / to UV radiation: resistant.

product features, product functions, product components / general:

• product feature.
• halogen-free: No.
• silicon-free: Yes.

standards, specifications, approvals:

• UL/ETL listing / 300 V Rating: No.
• UL/ETL style / 600 V Rating: No.
• certificate of suitability.
• EAC approval: Yes.
• CE marking: Yes.
• RoHS conformity: Yes.
• Marine classification association.
• American Bureau of Shipping Europe Ltd. (ABS): No.
• French marine classification society (BV): No.
• Det Norske Veritas (DNV): No.
• Germanische Lloyd (GL): No.
• Lloyds Register of Shipping (LRS): No.
• Nippon Kaiji Kyokai (NK): No.
• Polski Rejestr Statkow (PRS): No.
• reference code.
• according to IEC 81346-2: WG.
• according to IEC 81346-2:2019: WGB.
