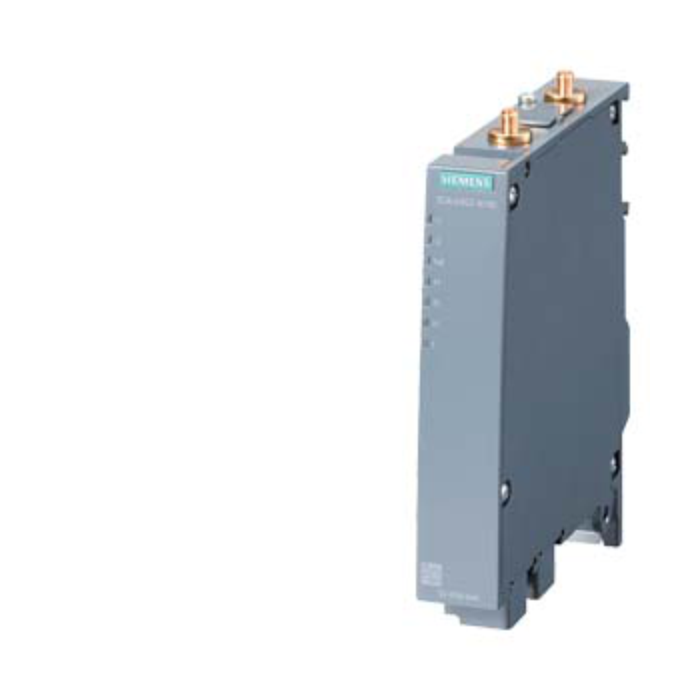

IWLAN client, SCALANCE W734-1, RJ45
Pricing available on request
Description:
- The SCALANCE W734-1 is an industrial-grade IWLAN client supporting IEEE 802.11a/b/g/h/n across 2.4 GHz and 5 GHz bands, with a gross data rate of up to 300 Mbit/s.
- It features 2× RJ45 Ethernet ports, PoE support, and redundant 24 V DC input.
- With KEY-PLUG compatibility, it enables advanced iFeatures like iPCF, iPCF-MC, and iPRP, making it ideal for mobile or remote automation nodes.
Specifications:
- Wireless Standards: IEEE 802.11a/b/g/h/n.
- Frequency Bands: 2.4 GHz / 5 GHz.
- Max WLAN Data Rate: 300 Mbit/s.
- Ethernet Ports: 2 × RJ45 (10/100 Mbit/s).
- Antenna Ports: 2 × R-SMA (external).
- PoE Support: IEEE 802.3af/at.
- Power Supply: 24 V DC or PoE.
- Mounting Options: DIN rail, wall, S7-300/S7-1500 rail.
- Protection Class: IP30.
- Operating Temp: –20 °C to +60 °C.
- Dimensions (W×H×D): 26 × 156 × 127 mm.
- Weight: ~520 g.
- iFeatures Support: iPCF, iPCF-MC, iPRP (via KEY-PLUG W780/W740).
- Management Interfaces: Web UI, CLI, SNMPv1/v2/v3, STEP 7, TIA Portal.
- Security Protocols: WPA2, IEEE 802.11i/e, ACL, SSH, IEEE 802.1x.
- Redundancy Protocols: STP, RSTP, MSTP.
- Marine & Hazardous Approvals: ABS, BV, DNV, NK, PRS, ATEX, IECEx.
| SKU | 6GK5734-1FX00-0AA0 |
|---|---|
| Brand | Siemens |
