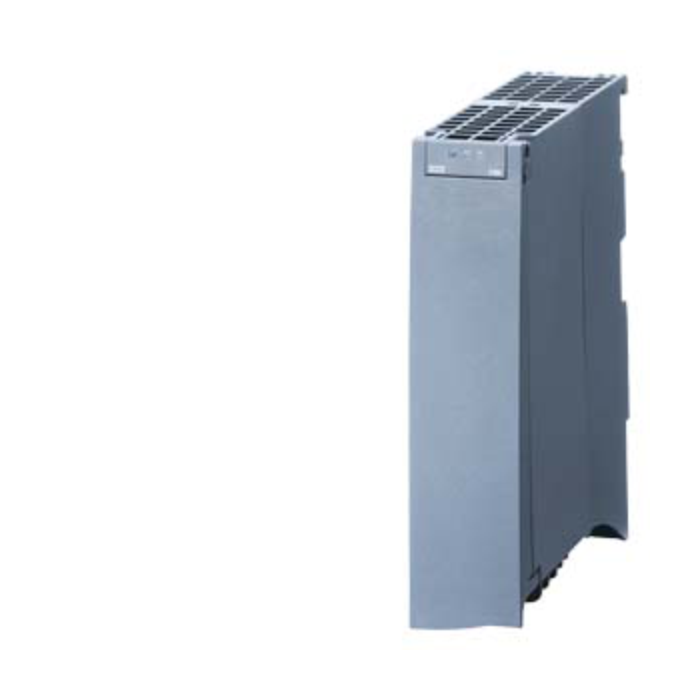

Siemens S7-1500 SIPLUS SM 522 Digital output modules SIPLUS S7-1500 DQ 8X24VDC/2A HF
Pricing available on request
Description:
- This module provides 16 digital outputs, each capable of sourcing up to 0.5 A at 24 VDC, optimized for high-frequency switching, diagnostics, and short-circuit protection.
- With extended temperature tolerance and conformal coating, it’s ideal for outdoor, marine, and process-critical installations where environmental resilience and output reliability are essential.
Specifications:
- Output Channels: 16 (grouped in sets of 8).
- Rated Output Voltage: 24 VDC (range: 19.2–28.8 VDC).
- Output Current per Channel: Max 0.5 A.
- Total Current (per group): Max 3 A.
- Switching Frequency: Up to 1 kHz resistive / 10 Hz inductive.
- Short-Circuit Protection: Yes (per channel).
- Diagnostics: Channel diagnostics, wire break, short.
- Power Loss: ~3.5 W.
- Backplane Bus Consumption: ~1.1 W.
- Isolation Test Voltage: 707 VDC.
- Mounting Dimensions (W×H×D): 35 × 147 × 129 mm.
- Weight: ~250 g.
- Environmental & Compliance:
- Operating Temp: –40 °C to +70 °C.
- Humidity: Up to 100% RH with condensation/frost.
- Conformal Coating: Class 2 (EN 61086), IPC-CC-830A compliant.
- Protection Class: IP20.
- Approvals: CE, UL, RCM, ATEX, IECEx, DNV, KC.
- Global Warming Potential: ~18.9 kg CO₂ eq (lifecycle).
| SKU | 6AG1522-1BF00-7AB0 |
|---|---|
| Brand | Siemens |
