General information:

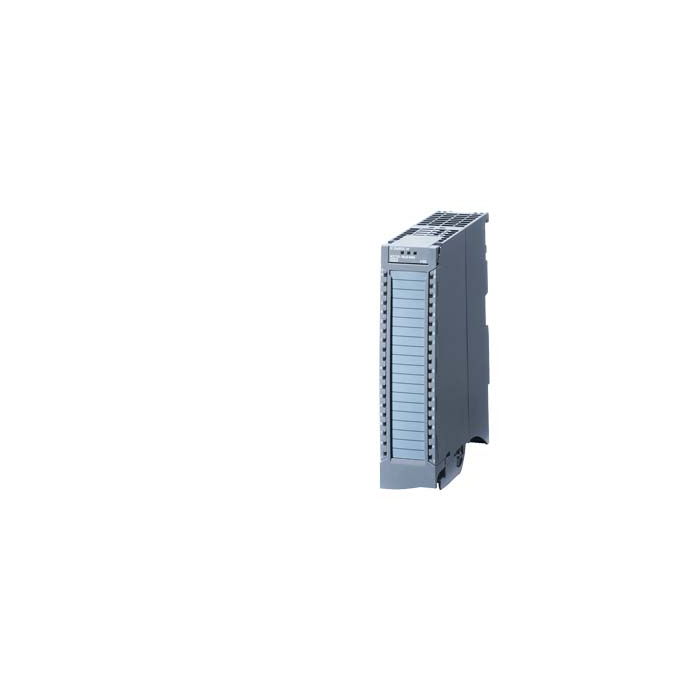

• Product type designation: DI 16x230VAC BA.
• HW functional status: from FS01.
• Firmware version: V2.0.0.
• FW update possible: Yes.
• Product function:
• I&M data: Yes; I&M0 to I&M3.
• Isochronous mode: No.
• Prioritized startup: Yes.
• Engineering with:
• STEP 7 TIA Portal configurable/integrated from version: V12 / V12.
• STEP 7 configurable/integrated from version: V5.5 SP3 / -.
• PROFIBUS from GSD version/GSD revision: V1.0 / V5.1.
• PROFINET from GSD version/GSD revision: V2.3 / -.
• Operating mode:
• DI: Yes.
• Counter: No.
• MSI: Yes.

Power:

• Power available from the backplane bus: 1 W.

Power loss:

• Power loss, typ.: 4.9 W.

Digital inputs:

• Number of digital inputs: 16.
• Digital inputs, parameterizable: No.
• Source/sink input: P-reading.
• Input characteristic curve in accordance with IEC 61131, type 1: Yes.
• Input voltage:
• Rated value (DC): 230 V; 120/230 V AC, 50/60 Hz.
• for signal "0": 0V AC to 40V AC.
• for signal "1": 79V AC to 264V AC.
• Input current:
• for signal "1", typ.: 11 mA; At 230 V AC and 5.5 mA at 120 V AC.
• Input delay (for rated value of input voltage):
• for standard inputs:
• parameterizable: No.
• at "0" to "1", max.: 25 ms.
• at "1" to "0", max.: 25 ms.
• for interrupt inputs:
• parameterizable: No.
• for technological functions:
• parameterizable: No.
• Cable length:
• shielded, max.: 1 000 m.
• unshielded, max.: 600 m.

Encoder:

• Connectable encoders:
• 2-wire sensor: Yes.
• permissible quiescent current (2-wire sensor), max.: 2 mA.

Interrupts/diagnostics/status information:

• Diagnostics function: No.
• Alarms:
• Diagnostic alarm: No.
• Hardware interrupt: No.
• Diagnoses:
• Monitoring the supply voltage: No.
• Wire-break: No.
• Short-circuit: No.
• Diagnostics indication LED:
• RUN LED: Yes; green LED.
• ERROR LED: Yes; red LED.
• Monitoring of the supply voltage (PWR-LED): No.
• Channel status display: Yes; green LED.
• for channel diagnostics: No.
• for module diagnostics: Yes; red LED.

Potential separation:

• Potential separation channels:
• between the channels: No.
• between the channels, in groups of: 4.
• between the channels and backplane bus: Yes.

Permissible potential difference:

• between different circuits: 250 V AC between the channels and the backplane bus; 500 V AC between the channels.

Isolation:

• Isolation tested with: 3 100 V DC.

Standards, approvals, certificates:

• Suitable for safety functions: No.

product functions / security / header:

• signed firmware update: No.
• data integrity: No.

Ambient conditions:

• Ambient temperature during operation:
• horizontal installation, min.: -30 °C; From FS05.
• horizontal installation, max.: 60 °C.
• vertical installation, min.: -30 °C; From FS05.
• vertical installation, max.: 40 °C.

Dimensions:

• Width: 35 mm.
• Height: 147 mm.
• Depth: 129 mm.

Weights:

• Weight, approx.: 300 g.
