General information:

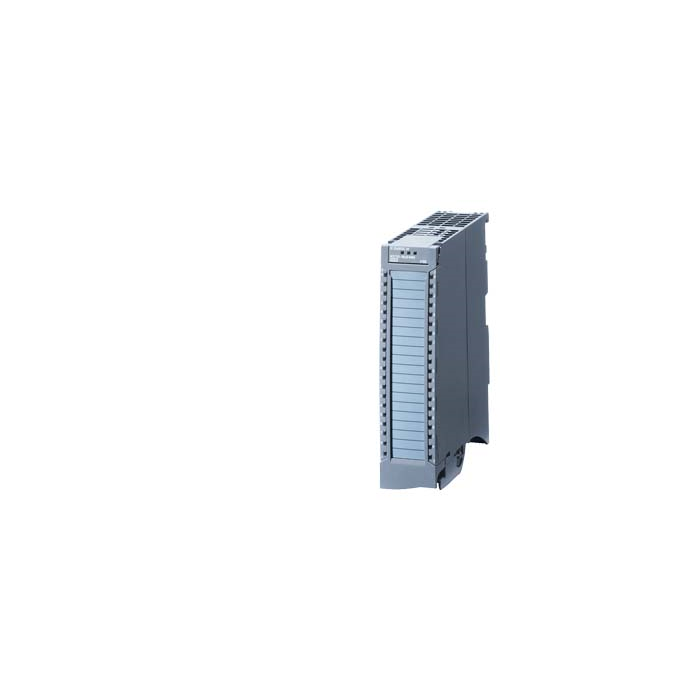

• Product type designation: DI 16x24VDC HF.
• HW functional status: from FS04.
• Firmware version: V2.2.0.
• FW update possible: Yes.
• Product function:
• I&M data: Yes; I&M0 to I&M3.
• Isochronous mode: Yes.
• Prioritized startup: Yes.
• Engineering with:
• STEP 7 TIA Portal configurable/integrated from version: V13 SP1 / -.
• STEP 7 configurable/integrated from version: V5.5 SP3 / -.
• PROFIBUS from GSD version/GSD revision: V1.0 / V5.1.
• PROFINET from GSD version/GSD revision: V2.3 / -.
• Operating mode:
• DI: Yes.
• Counter: Yes.
• Oversampling: No.
• MSI: Yes.

Supply voltage:

• Rated value (DC): 24 V.
• permissible range, lower limit (DC): 19.2 V.
• permissible range, upper limit (DC): 28.8 V.
• Reverse polarity protection: Yes.

Input current:

• Current consumption, max.: 20 mA; with 24 V DC supply.

Power:

• Power available from the backplane bus: 1.1 W.

Power loss:

• Power loss, typ.: 2.6 W.

Digital inputs:

• Number of digital inputs: 16.
• Digital inputs, parameterizable: Yes.
• Source/sink input: P-reading.
• Input characteristic curve in accordance with IEC 61131, type 3: Yes.
• Digital input functions, parameterizable:
• Gate start/stop: Yes.
• Freely usable digital input: Yes.
• Counter:
• Number, max.: 2.
• Counting frequency, max.: 3 kHz.
• Counting width: 32 bit.
• Counting direction up/down: Up.
• Input voltage:
• Rated value (DC): 24 V.
• for signal "0": -30 to +5 V.
• for signal "1": +11 to +30V.
• Input current:
• for signal "1", typ.: 2.5 mA.
• Input delay (for rated value of input voltage):
• for standard inputs:
• parameterizable: Yes; 0.05 / 0.1 / 0.4 / 1.6 / 3.2 / 12.8 / 20 ms.
• at "0" to "1", min.: 0.05 ms.
• at "0" to "1", max.: 20 ms.
• at "1" to "0", min.: 0.05 ms.
• at "1" to "0", max.: 20 ms.
• for interrupt inputs:
• parameterizable: Yes.
• for technological functions:
• parameterizable: Yes.
• Cable length:
• shielded, max.: 1 000 m.
• unshielded, max.: 600 m.

Encoder:

• Connectable encoders:
• 2-wire sensor: Yes.
• permissible quiescent current (2-wire sensor), max.: 1.5 mA.

Isochronous mode:

• Filtering and processing time (TCI), min.: 80 µs; At 50 μs filter time.
• Bus cycle time (TDP), min.: 250 µs.

Interrupts/diagnostics/status information:

• Diagnostics function: Yes.
• Alarms:
• Diagnostic alarm: Yes.
• Hardware interrupt: Yes.
• Diagnoses:
• Monitoring the supply voltage: Yes.
• Wire-break: Yes; to I < 350 µA.
• Short-circuit: No.
• Diagnostics indication LED:
• RUN LED: Yes; green LED.
• ERROR LED: Yes; red LED.
• Monitoring of the supply voltage (PWR-LED:) Yes; green LED.
• Channel status display: Yes; green LED.
• for channel diagnostics: Yes; red LED.
• for module diagnostics: Yes; red LED.

Potential separation:

• Potential separation channels:
• between the channels: No.
• between the channels, in groups of: 16.
• between the channels and backplane bus: Yes.
• between the channels and the power supply of the electronics: No.

Isolation:

• Isolation tested with: 707 V DC (type test).

Standards, approvals, certificates:

• Suitable for safety functions: No.

product functions / security / header:

• data integrity: No.

Ambient conditions:

• Ambient temperature during operation:
• horizontal installation, min.: -30 °C; From FS05.
• horizontal installation, max.: 60 °C.
• vertical installation, min.: -30 °C; From FS05.
• vertical installation, max.: 40 °C.
• Altitude during operation relating to sea level:
• Installation altitude above sea level, max.: 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual.

Dimensions:

• Width: 35 mm.
• Height: 147 mm.
• Depth: 129 mm.

Weights:

• Weight, approx.: 240 g.
