General information:

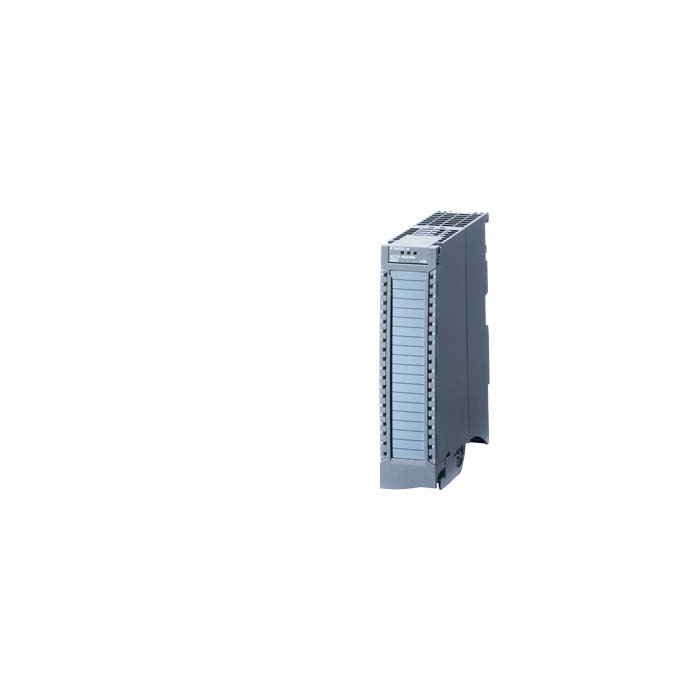

• Product type designation: DI 16x24VDC SRC BA.
• HW functional status: from FS01.
• Firmware version: V2.0.0.
• FW update possible: Yes.
• Product function:
• I&M data: Yes; I&M0 to I&M3.
• Isochronous mode: No.
• Prioritized startup: Yes.
• Engineering with:
• STEP 7 TIA Portal configurable/integrated from version: V12 / V12.
• STEP 7 configurable/integrated from version: V5.5 SP3 / -.
• PROFIBUS from GSD version/GSD revision: V1.0 / V5.1.
• PROFINET from GSD version/GSD revision: V2.3 / -.
• Operating mode:
• DI: Yes.
• Counter: No.
• MSI: Yes.

Supply voltage:

• permissible range, lower limit (DC): 19.2 V.
• permissible range, upper limit (DC): 28.8 V.

Power:

• Power available from the backplane bus: 0.9 W.

Power loss:

• Power loss, typ.: 2.8 W.

Digital inputs:

• Number of digital inputs: 16.
• Digital inputs, parameterizable: No.
• Source/sink input: Sourcing.
• Input characteristic curve in accordance with IEC 61131, type 3: Yes.
• Input voltage:
• Rated value (DC): 24 V.
• for signal "0": -5 to +30V.
• for signal "1": -11 to -30V.
• Input current:
• for signal "1", typ.: 4.5 mA.
• Input delay (for rated value of input voltage):
• for standard inputs:
• parameterizable: No.
• at "0" to "1", min.: 3 ms.
• at "0" to "1", max.: 4 ms.
• at "1" to "0", min.: 3 ms.
• at "1" to "0", max.: 4 ms.
• for interrupt inputs:
• parameterizable: No.
• for technological functions:
• parameterizable: No.
• Cable length:
• shielded, max.: 1 000 m.
• unshielded, max.: 600 m.

Encoder:

• Connectable encoders:
• 2-wire sensor: Yes.
• permissible quiescent current (2-wire sensor), max.: 1.5 mA.

Interrupts/diagnostics/status information:

• Diagnostics function: No.
• Alarms:
• Diagnostic alarm: No.
• Hardware interrupt: No.
• Diagnoses:
• Monitoring the supply voltage: No.
• Wire-break: No.
• Short-circuit: No.
• Diagnostics indication LED:
• RUN LED: Yes; green LED.
• ERROR LED: Yes; red LED.
• Monitoring of the supply voltage (PWR-LED): No.
• Channel status display: Yes; green LED.
• for channel diagnostics: No.
• for module diagnostics: No.

Potential separation:

• Potential separation channels:
• between the channels: No.
• between the channels, in groups of: 16.
• between the channels and backplane bus: Yes.

Isolation:

• Isolation tested with: 707 V DC (type test).

Standards, approvals, certificates:

• Suitable for safety functions: No.

product functions / security / header:

• signed firmware update: No.
• data integrity: No.

Ambient conditions:

• Ambient temperature during operation:
• horizontal installation, min.: -25 °C; From FS05.
• horizontal installation, max.: 60 °C.
• vertical installation, min.: -25 °C; From FS05.
• vertical installation, max.: 40 °C.
• Altitude during operation relating to sea level.
• Installation altitude above sea level, max.: 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual.

Dimensions:

• Width: 35 mm.
• Height: 147 mm.
• Depth: 129 mm.

Weights:

• Weight, approx.: 230 g.
