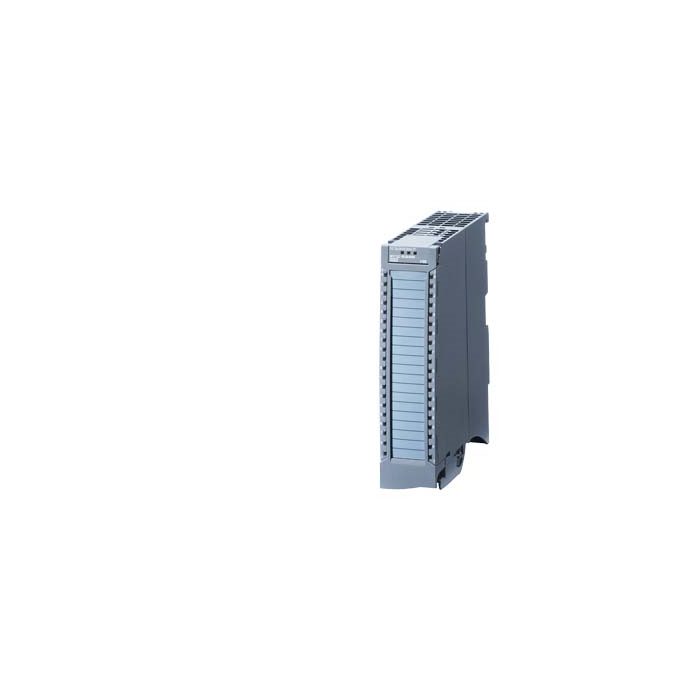

Siemens S7-1500 SM 522 Digital output modules DQ 8X230VAC/2A ST (TRIAC)
Pricing available on request
Description:
- SIMATIC S7-1500 digital output module DQ 8x230 V AC/2 A ST with TRIAC and 8 channels in groups of 1 (2 A per group).
- Front connectors (screw terminals or push-ins) must be purchased separately.
Specifications:
- Product type designation: DQ 8x230 V AC/2A ST (triac).
- HW functional status: From FS01.
- Firmware version: V2.3.0.
- FW updates possible.
- Width: 35 mm.
- Height: 147 mm.
- Depth: 129 mm.
Product function:
- I&M data: I&M0 to I&M3.
- Prioritized startup.
Operating mode:
- DQ.
- MSO.
- Integrated operating cycle counter: FW V 2.3.0 or higher.
Output voltage / header:
- Rated value (AC): 230 V; 120/230 V AC, 50/60 Hz.
Power:
- Power available from the backplane bus: 0.9 W.
- Power loss, type: 10.8 W.
Digital outputs:
- Type of digital output: Triac.
- Number of digital outputs: 8.
- Current sinking.
- Current sourcing.
- Digital outputs, parameterizable.
- No Short-circuit protection.
- built-in fuse: 6.3 A melting fuse, slow-blow.
- Size of motor starters according to NEMA, max: 5.
| SKU | 6ES7522-5FF00-0AB0 |
|---|---|
| Brand | Siemens |
