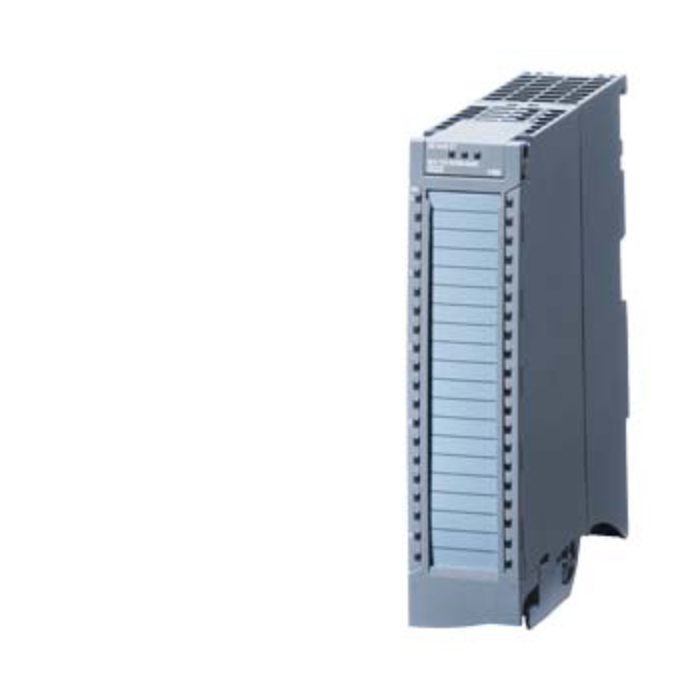

Siemens S7-1500 SM 532 Analog output modules AQ 4XU/I ST
Pricing available on request
Description:
- This module provides 4 analog output channels, configurable for voltage or current signals.
- With 16-bit resolution, diagnostics, and substitute value support, it’s ideal for actuator control, process feedback, and signal interfacing in demanding industrial environments.
- It also supports safety-oriented shutdown up to SIL 2 / PL d, making it suitable for critical applications.
Specifications:
- Output Channels: 4 (grouped in sets of 4).
- Signal Types Supported: Voltage, Current.
- Resolution: 16-bit.
- Accuracy: ±0.3% (typical); ±0.2% at 25 °C.
- Output Voltage Ranges: 0–10 V, 1–5 V, ±10 V.
- Output Current Ranges: 0–20 mA, ±20 mA, 4–20 mA.
- Short-Circuit Protection: Yes (voltage outputs only).
- Wire-Break Detection: Yes (current outputs only).
- Conversion Time: 0.5 ms per channel.
- Settling Time: 1.5–2.5 ms depending on load type.
- Load Impedance: ≥1 kΩ (voltage); ≤750 Ω (current).
- Cable Length: 800 m (current); 200 m (voltage).
- Power Loss: ~4 W.
- Backplane Bus Consumption: ~0.6 W.
- Dimensions (W×H×D): 35 × 147 × 129 mm.
- Weight: ~310 g.
- Environmental & Compliance:
- Operating Temp: –30 °C to +60 °C (horizontal); –30 °C to +40 °C (vertical).
- Altitude: Up to 5000 m.
- Humidity: 100% RH with condensation/frost.
- Isolation: 707 V DC (type test).
- Safety Ratings:
- SIL 2 (IEC 62061).
- PL d, Cat. 3 (ISO 13849-1).
- Approvals: CE, UL, ATEX, IECEx, DNV, FM, CCC, RCM.
- Eco Profile: Siemens EcoTech certified.
- Global Warming Potential: 37.6 kg CO₂ eq (lifecycle).
| SKU | 6ES7532-5HD00-0AB0 |
|---|---|
| Brand | Siemens |
