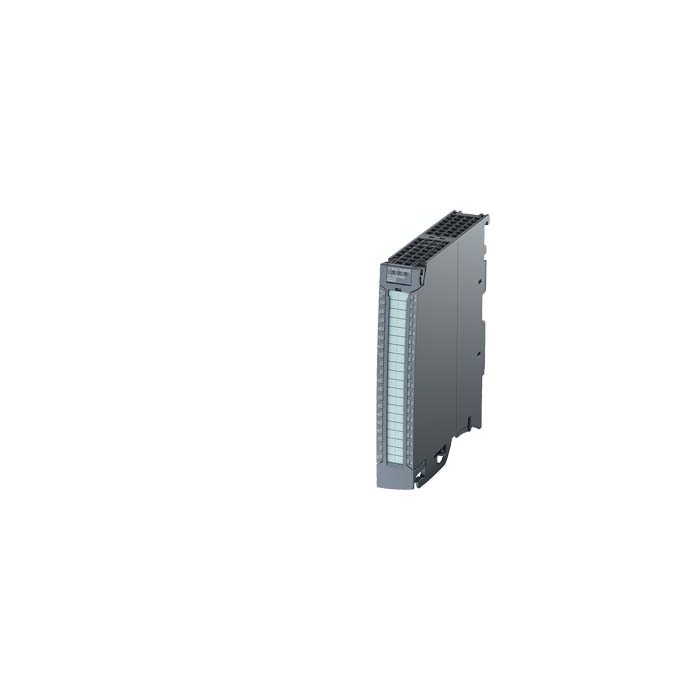

Siemens S7-1500 SM523 Digital input/output modules
Pricing available on request
Description:
- SIMATIC S7-1500 digital input/output module, DI16x 24VDC BA, 16 channels in groups of 16, input delay type 3.2 MS (IEC 61131), DQ16XDC 24V/0.5A BA, 16 channels in groups of 8; 4 A per group; the module supports the safety-oriented shutdown of load groups up to SIL2 according to EN IEC 62061:2021 and Category 2 / PL c according to EN ISO 13849-1:2015.
- Delivery comprises a push-in front connector.
Specifications:
- Product type designation: DI 16x24VDC / DQ16x24VDC/0.5A BA.
- HW functional status: From FS01.
- Firmware version: V1.0.0.
- Width: 25 mm.
- Height: 147 mm.
- Depth: 129 mm.
Product function:
- I&M data: I&M0 to I&M3.
- Prioritized startup.
Operating mode:
- DI.
- DQ.
- MSI.
- MSO.
Supply voltage:
- Rated value (DC): 24 V.
- permissible range, lower limit (DC): 19.2 V.
- permissible range, upper limit (DC): 28.8 V.
- Reverse polarity protection: through internal protection with 7 A per group.
Input current:
- Current consumption, max: 30 mA.
Output voltage / header:
- Rated value (DC): 24 V.
Power:
- Power available from the backplane bus: 1.1 W.
- Power loss, type: 3.45 W.
Digital Inputs:
- Number of digital inputs: 16.
- Source/sink input: P-reading.
- Input characteristic curve in accordance with IEC 61131, type 3.
Digital outputs:
- Type of digital output: Transistor.
- Number of digital outputs: 16.
- Current sourcing.
- Short-circuit protection.
- Response threshold, typ.: 1 A.
- Limitation of inductive shutdown voltage to: L+ (-53 V).
- Controlling digital input.
| SKU | 6ES7523-1BL00-0AA0 |
|---|---|
