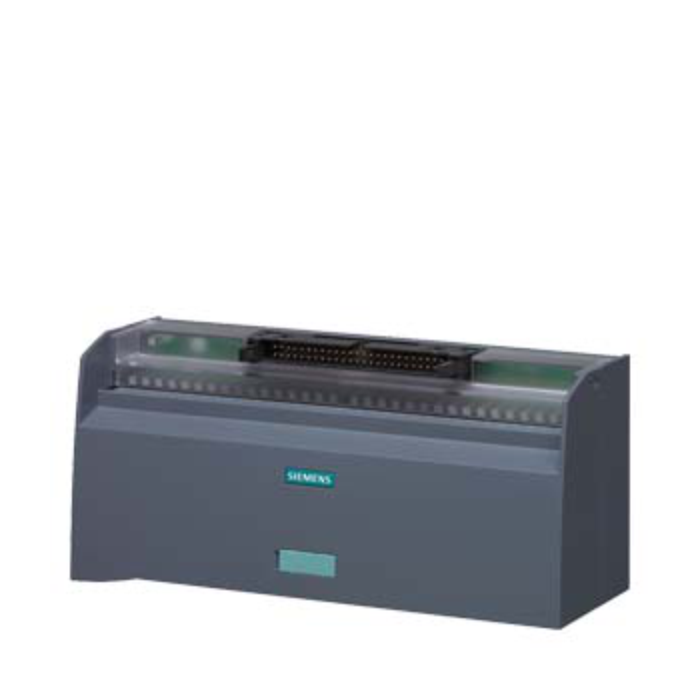

Siemens S7-1500 Terminal module for analog modules (for S7-1500 only); 50-pin, screw-type terminal without LEDs
Pricing available on request
Description:
- This is a TPA connection module with 72 terminals, optimized for analog signal routing in SIMATIC S7-1500 systems.
- It uses screw-type terminals for secure, torque-controlled wiring and includes a 50-pole IDC connector for seamless integration with analog modules.
- Its compact footprint and LED-free design make it suitable for installations focused on clean signal transmission and long-term serviceability.
Specifications:
- Module Type: TPA (Analog I/O Module).
- Terminal Type: Screw-type terminals (no LED).
- Number of Terminals: 72.
- Rated Voltage: 24 V DC nominal / 50 V DC max.
- Max Current per Pin: 1 A.
- Total Current: 1 A per signal cable.
- Connector Interface: 50-pole IDC connector with strain relief.
- Terminal Cross-Section Range: 0.5–2.5 mm² (with ferrules).
- Dimensions (W × H × D): 130 × 76 × 60 mm.
- Ambient Temperature (Operation): 0 °C to +60 °C.
- Ambient Temperature (Storage): –40 °C to +70 °C.
- Combustibility Class (UL 94): V1.
- Pollution Degree / Overvoltage Category: 2 / II.
- Approvals: cULus certified.
- Net Weight: ~410 g.
- Environmental Product Declaration: Yes (GWP: 91.2 kg CO₂ eq total).
| SKU | 6ES7924-2CC20-0AA0 |
|---|---|
| Brand | Siemens |
