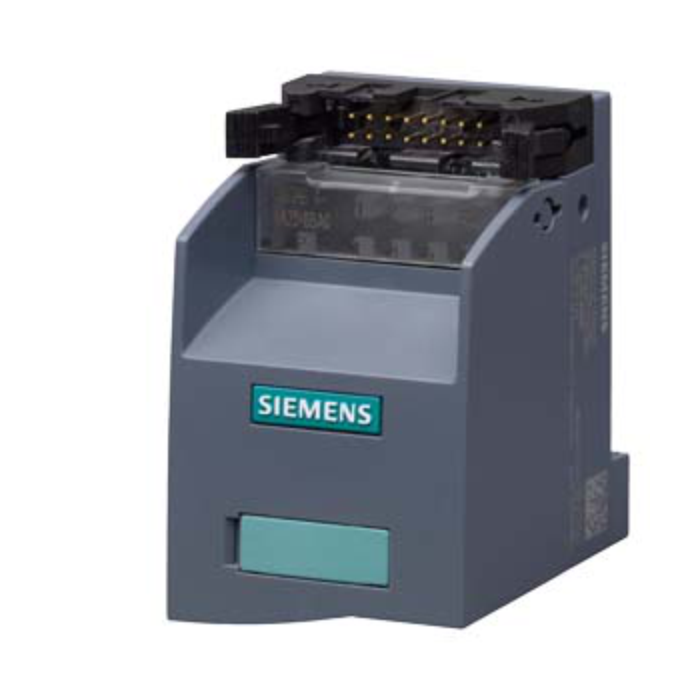

Siemens S7-1500 Terminal module TP1; 16-pin, push-in terminals without LEDs
Pricing available on request
Description:
- This is a TP1 connection module with push-in terminals (no LED indicators), designed to interface between SIMATIC S7-300/1500 systems and field-level sensors/actuators.
- It supports 8 signal channels and 2x2 terminals for potential distribution (L+ and M), making it ideal for compact, modular wiring setups.
Specifications:
- Module Type: TP1 connection module.
- Terminal Type: Push-in terminals (no LED).
- Number of Channels: 8.
- Potential Terminals: 2× L+, 2× M.
- Connector Interface: 16-pole IDC connector with strain relief.
- Max Wire Length: 30 m (to front connector module).
- Rated Voltage: 24 V DC / 50 V DC max.
- Max Current per Pin: 1 A.
- Total Current: 4 A.
- Terminal Cross-Section Range: 0.2–2.5 mm² (with ferrules).
- Mounting: DIN rail (35 mm or 15 mm), any position.
- Dimensions (W × H × D): 40 × 58 × 50 mm.
- Ambient Temperature (Operation): 0 °C to +60 °C.
- Ambient Temperature (Storage): –40 °C to +70 °C.
- Combustibility Class (UL 94): V1.
- Pollution Degree / Overvoltage Category: 2 / II.
- PE / Shield / Disconnect Function: Not included.
- Approvals: cULus certified.
- Net Weight: ~50 g.
- Environmental Product Declaration: Yes (GWP: 11.1 kg CO₂ eq total).
| SKU | 6ES7924-0AA20-0AC0 |
|---|---|
| Brand | Siemens |
