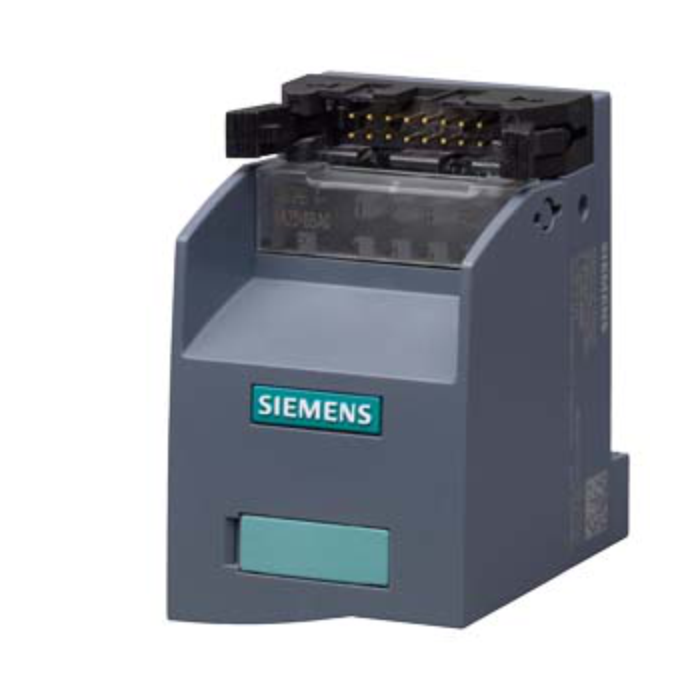

Siemens S7-1500 Terminal module TP1; 16-pin, screw-type terminals with LED's
Pricing available on request
Description:
- This is a TP1 connection module with screw-type terminals and integrated LED indicators, designed to interface between SIMATIC S7-300/1500 systems and field-level devices.
- It supports 8 signal channels, includes 2×2 terminals for potential distribution (L+ and M), and provides visual diagnostics via status LEDs—ideal for environments where secure wiring and quick fault identification are essential.
Specifications:
- Terminal Type: Screw-type terminals with LED indication.
- Number of Channels: 8.
- Potential Terminals: 2× L+, 2× M.
- Connector Interface: 16-pole IDC connector with strain relief.
- Max Wire Length: 30 m (to front connector module).
- Rated Voltage: 24 V DC (nominal), 28.8 V DC (max).
- Max Current per Pin: 1 A.
- Total Current: 4 A.
- LED Indicators: Yellow (I/O status), Green (power OK).
- Terminal Cross-Section Range: 0.5–2.5 mm² (with ferrules).
- Mounting: DIN rail (35 mm or 15 mm), any position.
- Dimensions (W × H × D): 40 × 58 × 50 mm.
- Ambient Temperature (Operation): 0 °C to +60 °C.
- Ambient Temperature (Storage): –40 °C to +70 °C.
- Combustibility Class (UL 94): V1.
- Pollution Degree / Overvoltage Category: 2 / II.
- PE / Shield / Disconnect Function: Not included.
- Approvals: cULus certified.
- Net Weight: ~80 g.
- Environmental Product Declaration: Yes (GWP: 25.4 kg CO₂ eq total).
| SKU | 6ES7924-0AA20-0BA0 |
|---|---|
| Brand | Siemens |
