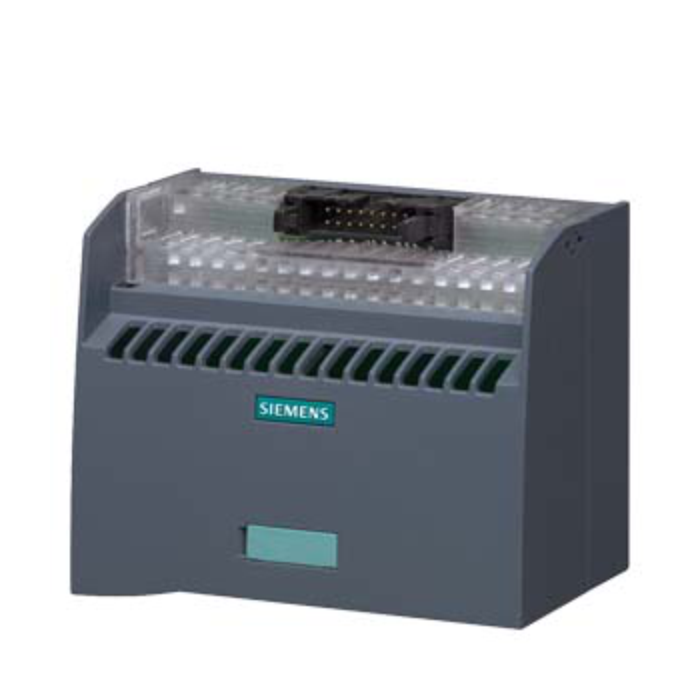

Siemens S7-1500 Terminal module TPOo; screw-type terminals with LEDs
Pricing available on request
Description:
- This is a TPOO connection module with 8 optocoupler outputs, engineered to interface SIMATIC S7-300/1500 PLCs with field-level actuators.
- It supports 24 V DC switching, includes short-circuit and overload protection, and provides status LEDs for each output plus power indication.
- The screw terminals ensure secure, vibration-resistant wiring—ideal for industrial environments.
Specifications:
- Module Type: TPOO (Optocoupler Output Module).
- Terminal Type: Screw-type terminals with LED indication.
- Number of Channels: 8 (optocoupler outputs).
- Output Type: Electronic (optocoupler).
- Switching Capacity: 24 V DC / 4 A (short-circuit and overload-proof).
- Operating Voltage: 24 V DC (nominal), 28.8 V DC (max).
- Max Current per Pin: 1 A.
- Total Current: 32 A (grouped; max 16 A per group of 4 channels).
- Operating Frequency: Up to 500 Hz.
- LED Indicators: Yellow (I/O status), Green (power OK).
- Terminal Cross-Section Range: 0.5–2.5 mm² (with ferrules).
- Mounting: DIN rail (35 mm or 15 mm), any position.
- Dimensions (W × H × D): 130 × 76 × 60 mm.
- Ambient Temperature (Operation): 0 °C to +60 °C.
- Ambient Temperature (Storage): –40 °C to +70 °C.
- Combustibility Class (UL 94): V1.
- Pollution Degree / Overvoltage Category: 2 / II.
- Approvals: cULus, CE, RCM certified.
- Net Weight: ~290 g.
- Environmental Product Declaration: Yes (GWP: 287 kg CO₂ eq total).
| SKU | 6ES7924-0BF20-0BA0 |
|---|---|
