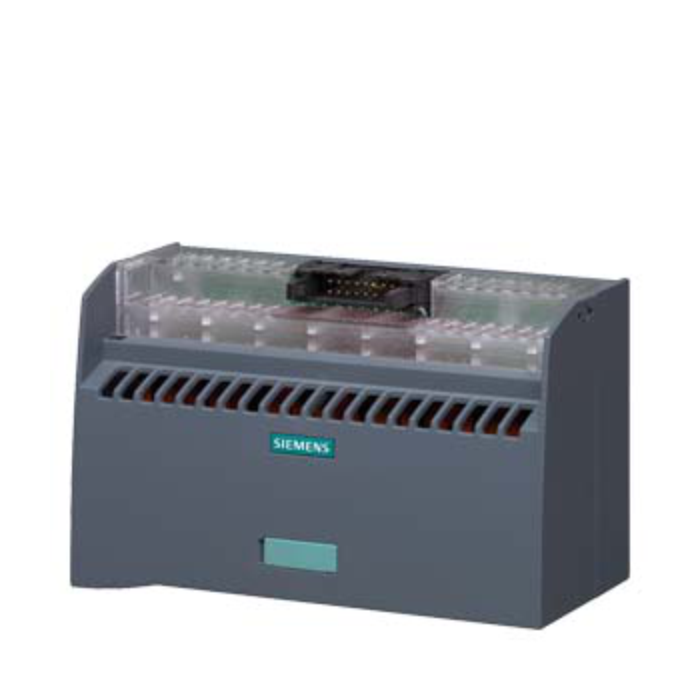

Siemens S7-1500 Terminal module TPRi, (230 V AC) screw-type terminals with LEDs
Pricing available on request
Description:
- This is a TPRI connection module with 8 relay inputs, each configured as normally open (NO) contacts.
- It’s built to adapt 230 V AC input signals to 24 V DC logic levels, making it ideal for interfacing high-voltage field signals with SIMATIC S7-300/1500 PLCs.
- The module includes status LEDs for each input and screw terminals for secure, torque-controlled wiring.
Specifications:
- Module Type: TPRI (Relay Input Module).
- Terminal Type: Screw-type terminals with LED indication.
- Number of Channels: 8 (relay inputs).
- Input Voltage (Relay Coil): 230 V AC.
- Output Signal: 24 V DC / 0.05 A max per channel.
- Operating Frequency: 8.33 Hz (max).
- Relay Endurance: 10 million mechanical / 3 million electrical cycles.
- LED Indicators: Yellow (I/O status), Green (power OK).
- Terminal Cross-Section Range: 0.5–2.5 mm² (with ferrules).
- Mounting: DIN rail (35 mm or 15 mm), any position.
- Dimensions (W × H × D): 130 × 76 × 60 mm.
- Ambient Temperature (Operation): 0 °C to +60 °C.
- Ambient Temperature (Storage): –40 °C to +70 °C.
- Combustibility Class (UL 94): V1.
- Pollution Degree / Overvoltage Category: 2 / II.
- Approvals: cULus, CE, RCM certified.
- Net Weight: ~320 g.
- Environmental Product Declaration: Yes (GWP: 287.2 kg CO₂ eq total).
| SKU | 6ES7924-0BE20-0BA0 |
|---|---|
| Brand | Siemens |
