Specifications:

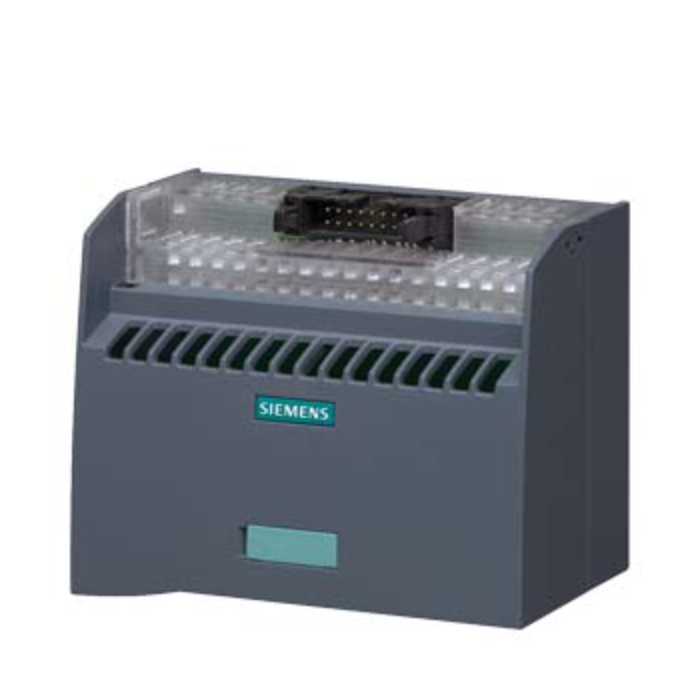

• Module Type: TPRO (Relay Output Module).
• Terminal Type: Push-in terminals with LED indication.
• Number of Channels: 8 (relay outputs).
• Contact Type: Single NO contact.
• Switching Capacity: 230 V AC / 3 A or 30 V DC / 3 A.
• Operating Voltage: 24 V DC (nominal), 28.8 V DC (max).
• Max Current per Pin: 1 A.
• Total Current: 4 A.
• Relay Endurance: 3 million mechanical cycles / 50,000 electrical.
• Operating Frequency: 0.1 Hz.
• LED Indicators: Yellow (I/O status), Green (power OK).
• Terminal Cross-Section Range: 0.2–2.5 mm² (with ferrules).
• Mounting: DIN rail (35 mm or 15 mm), any position.
• Dimensions (W × H × D): 100 × 76 × 60 mm.
• Ambient Temperature (Operation): 0 °C to +60 °C.
• Ambient Temperature (Storage): –40 °C to +70 °C.
• Combustibility Class (UL 94): V1.
• Pollution Degree / Overvoltage Category: 2 / II.
• Approvals: cULus, CE, RCM certified.
• Net Weight: ~230 g.
• Environmental Product Declaration: Yes (GWP: 234.2 kg CO₂ eq total).
