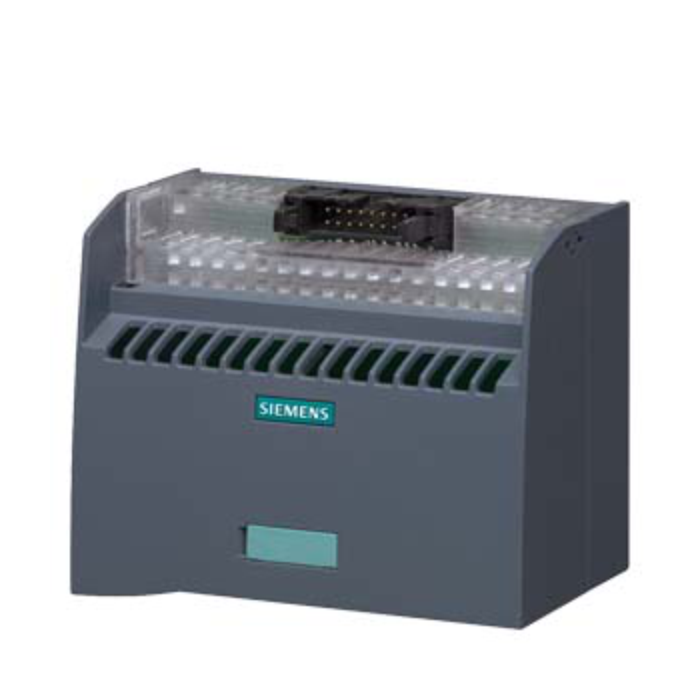

Siemens S7-1500 Terminal module TPRo, screw-type terminals with LEDs
Pricing available on request
Description:
- This is a TPRO connection module with 8 relay outputs, each configured as normally open (NO) contacts.
- It supports switching of 230 V AC / 3 A or 30 V DC / 3 A loads, making it ideal for interfacing PLC outputs with field-level actuators.
- The module includes status LEDs and push-in terminals, offering fast wiring and clear diagnostics.
Specifications:
- Module Type: TPRO (Relay Output Module).
- Terminal Type: Push-in terminals with LED indication.
- Number of Channels: 8 (relay outputs).
- Contact Type: Single NO contact.
- Switching Capacity: 230 V AC / 3 A or 30 V DC / 3 A.
- Operating Voltage: 24 V DC (nominal), 28.8 V DC (max).
- Max Current per Pin: 1 A.
- Total Current: 4 A.
- Relay Endurance: 3 million mechanical cycles / 50,000 electrical.
- Operating Frequency: 0.1 Hz.
- LED Indicators: Yellow (I/O status), Green (power OK).
- Terminal Cross-Section Range: 0.2–2.5 mm² (with ferrules).
- Mounting: DIN rail (35 mm or 15 mm), any position.
- Dimensions (W × H × D): 100 × 76 × 60 mm.
- Ambient Temperature (Operation): 0 °C to +60 °C.
- Ambient Temperature (Storage): –40 °C to +70 °C.
- Combustibility Class (UL 94): V1.
- Pollution Degree / Overvoltage Category: 2 / II.
- Approvals: cULus, CE, RCM certified.
- Net Weight: ~230 g.
- Environmental Product Declaration: Yes (GWP: 234.2 kg CO₂ eq total).
| SKU | 6ES7924-0BD20-0BA0 |
|---|---|
| Brand | Siemens |
