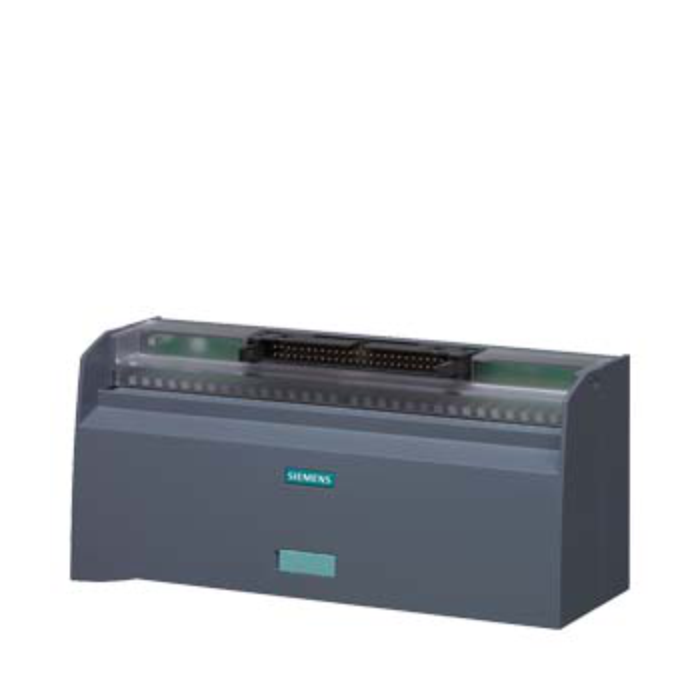

Siemens S7-1500 Terminals module TP3, screw-type terminals without LEDs
Pricing available on request
Description:
- This is a TP3 connection module with 98 terminals, supporting 32 digital I/O channels and 33 L+ / 33 M terminals for potential distribution.
- It uses screw-type terminals for secure, torque-controlled wiring and includes a 50-pole IDC connector for integration with SIMATIC S7-1500 modules.
- The absence of LED indicators makes it ideal for installations where visual diagnostics are not required.
Specifications:
- Module Type: TP3 (3-wire digital I/O).
- Terminal Type: Screw-type terminals (no LED).
- Number of Channels: 32.
- Number of Terminals: 98 (32 I/O + 33 L+ + 33 M).
- Rated Voltage: 24 V DC nominal / 50 V DC max.
- Max Current per Pin: 1 A.
- Total Current: 2 A.
- Connector Interface: 50-pole IDC connector with strain relief.
- Terminal Cross-Section Range: 0.5–2.5 mm² (with ferrules).
- Dimensions (W × H × D): 175 × 76 × 60 mm.
- Ambient Temperature (Operation): 0 °C to +60 °C.
- Ambient Temperature (Storage): –40 °C to +70 °C.
- Combustibility Class (UL 94): V1.
- Pollution Degree / Overvoltage Category: 2 / II.
- Approvals: cULus, ATEX, IECEx, RCM, CCC-Ex.
- Net Weight: ~390 g.
- Environmental Product Declaration: Yes (GWP: 44.1 kg CO₂ eq total).
| SKU | 6ES7924-2CA20-0AA0 |
|---|---|
| Brand | Siemens |
