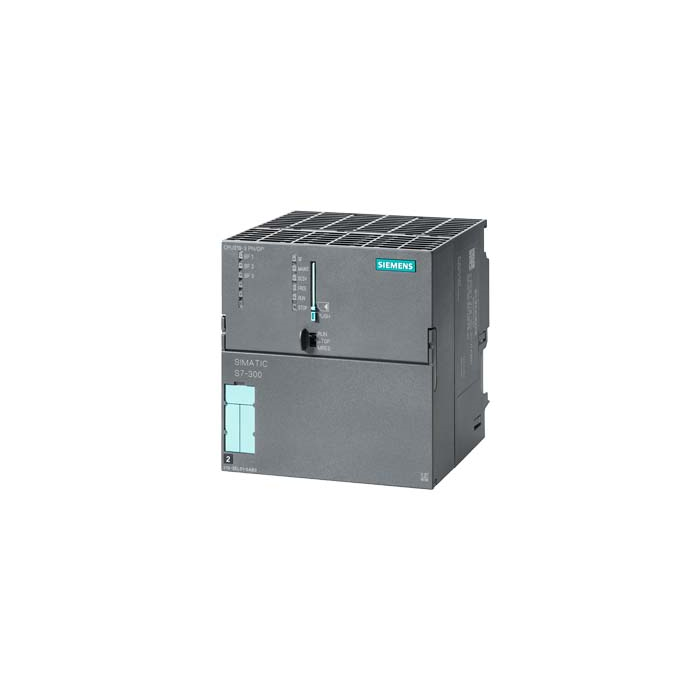

SIEMENS SIMATIC S7-300 CPU 319-3 PN/DP
Pricing available on request
Description:
- The CPU 319-3 PN/DP is Siemens' most powerful S7-300 processor, specifically designed for demanding automation applications.
- It has three integrated interfaces—MPI/DP, PROFIBUS DP, and PROFINET—making it excellent for hybrid topologies, high-speed distributed I/O, and synchronized control of complex systems.
Specifications:
- General Features:
- CPU type: SIMATIC S7-300 CPU 319-3 PN/DP.
- Firmware version: V3.2.
- Programming software: STEP 7 V5.5 or higher.
- Memory card: Micro Memory Card (MMC) up to 8 MB.
- Real-time clock: Retentive & synchronically (6-week backup).
- Isochronous mode: Supported via DP or PROFINET (not simultaneously).
- Electrical Characteristics:
- Supply voltage: 24 V DC (range: 19.2–28.8 V).
- Rated current consumption: 1,250 mA.
- Inrush current: 4 A.
- Power loss: ~14 W.
- Mains buffering: 5 ms.
- Memory & Processing:
- Work memory: 2 MB.
- Load memory: via MMC (max. 8 MB).
- Bit operation time: 0.004 µs.
- Word operation time: 0.01 µs.
- Floating point operation: 0.04 µs.
- Max blocks: 4,096 DBs, FCs, FBs (64 KB each).
- Data & Addressing:
- I/O address space: 8,192 bytes each for inputs and outputs.
- Retentive flag memory: MB 0–8191 (preset MB 0–15).
- Timers/Counters: 2,048 S7 timers & counters, IEC types supported.
- Retentive data area: up to 700 KB.
- Local data per block: up to 2,048 bytes.
- Interfaces & Communication:
- Interface 1: RS485 (MPI/PROFIBUS DP).
- Interface 2: RS485 (PROFIBUS DP master/slave).
- Interface 3: PROFINET (2-port RJ45 switch).
- Supported protocols:
- MPI, PROFIBUS DP (Master/Slave), PROFINET IO Controller/Device, CBA.
- TCP/IP, ISO-on-TCP, UDP.
- Web server: Integrated.
- Media redundancy: Supported.
- Shared device & prioritized startup: Supported.
- Max connections: 32 total.
- PG/OP: 31.
- S7 communication: 30.
- Open IE communication: 32.
- Expansion & Modules:
- Max DP masters: 2 integrated + 4 via CP.
- Max racks: 4.
- Max modules per rack: 8.
- Supported modules: FM (8), CP PtP (8), CP LAN (10).
- Environmental Conditions:
- Operating temperature: 0°C to +60°C.
- Storage temperature: -40°C to +70°C.
- Shock resistance: 15 g over 11 ms.
- Vibration resistance: IEC 60068-2-6 compliant.
- Pollution degree: 2.
- Dimensions & Weight:
- Width: 120 mm.
- Height: 125 mm.
- Depth: 130 mm.
- Weight: ~1,250 g.
- Approvals & Compliance:
- CE, UKCA, UL, ATEX, IECEx, RCM, CCC.
- RoHS: Compliant.
- Marine certifications: ABS, DNV, BV, LRS, NK, PRS.
| SKU | 6ES7318-3EL01-0AB0 |
|---|---|
| Brand | Siemens |
