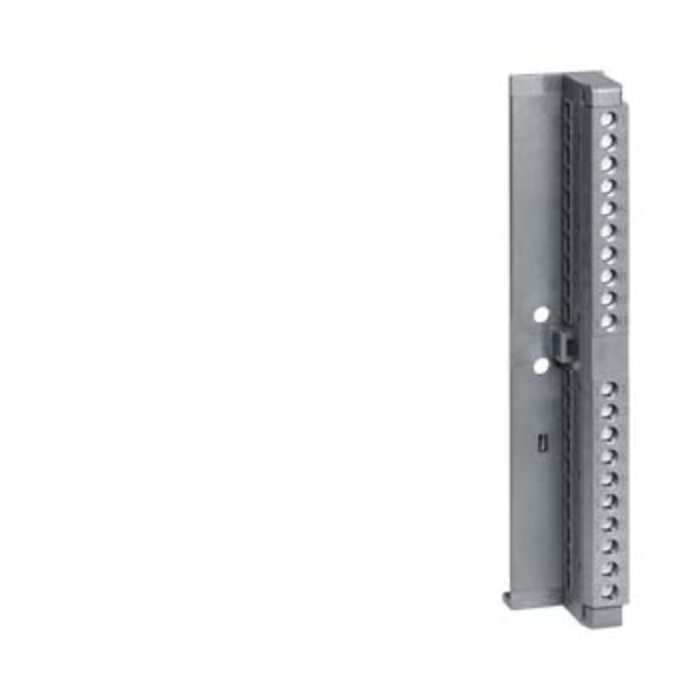

SIEMENS SIMATIC S7-300 Front connector, 20-pin, with screw contacts, 1 unit
Description:
- This front connector is used to interface field wiring with S7-300 signal modules.
- It features screw-type terminals for robust mechanical connections and supports single or dual-conductor ferrule combinations, making it ideal for industrial environments where durability and serviceability are key.
Specifications:
- Product Type: Front connector (screw contact).
- Number of Poles: 20.
- Connection Method: Screw terminals.
- Wire Type: Solid or flexible (with/without ferrules).
- Supported Wire Sizes: 0.25–1.5 mm² (AWG 24–16).
- Stripped Length: 6 mm.
- Tightening Torque: 0.4–0.7 Nm.
- Mounting Tool: 3–3.5 mm conical screwdriver.
- Dimensions (W×H×D): 23 × 131 × 36 mm.
- Weight: ~70 g.
- Operating Temp: 0 to +60 °C.
- Storage Temp: –40 to +70 °C.
- Compatibility: S7-300 signal modules.
- Compliance & Classification:
- CE, UKCA, RCM, ATEX, IECEx.
- Marine Approvals: PRS.
- eClass: 27-24-22-92.
- ETIM: EC002584.
- UNSPSC: 32-15-17-03.
| SKU | 6ES7392-1AJ00-0AA0 |
|---|---|
| Brand | Siemens |
