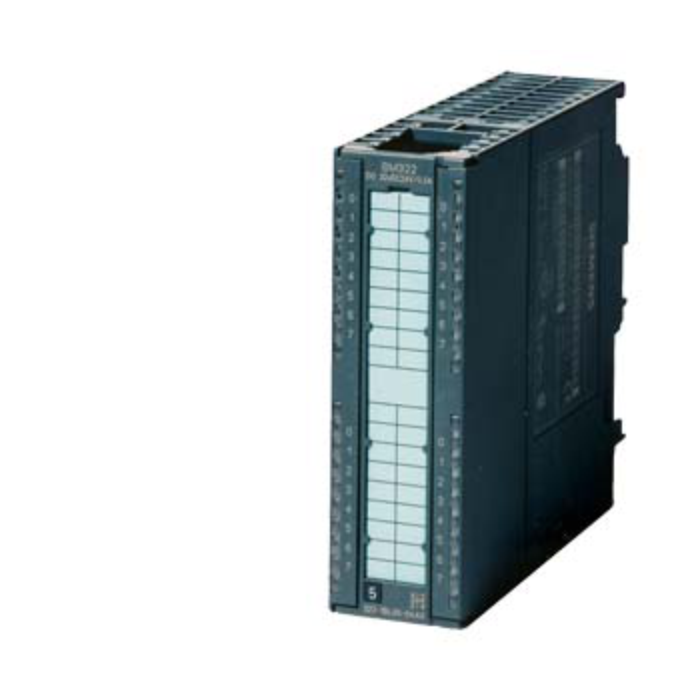

SIEMENS SIMATIC S7-300 SM 322 digital output high speed
Pricing available on request
SIMATIC S7-300:
- Digital output SM 322 High Speed
- Isolated
- 16 DQ
- 24 V DC
- 0.5A
- 1x 20-pole
Supply voltage:
- Load voltage: L+
- Rated value (DC): 24 V
- Permissible range, lower limit (DC): 20.4 V
- Permissible range, upper limit (DC): 28.8 V
Specifications:
- Input current:
- From load voltage L+ (without load), max.: 110 mA
- From backplane bus 5 V DC, max.: 70 mA
- Power loss typ.: 5 W
- Digital outputs:
- Number of digital outputs: 16
- Short-circuit protection: Yes; Electronic
- Response threshold, typ.: 1 A
- Limitation of inductive shutdown voltage to: L+ (-53 V)
- Controlling a digital input: Yes
- Dimensions:
- Width: 40 mm
- Height: 125 mm
- Depth: 120 mm
- Weight, approx.: 200 g
| SKU | 6ES7322-1BH10-0AA0 |
|---|---|
| Brand | Siemens |
