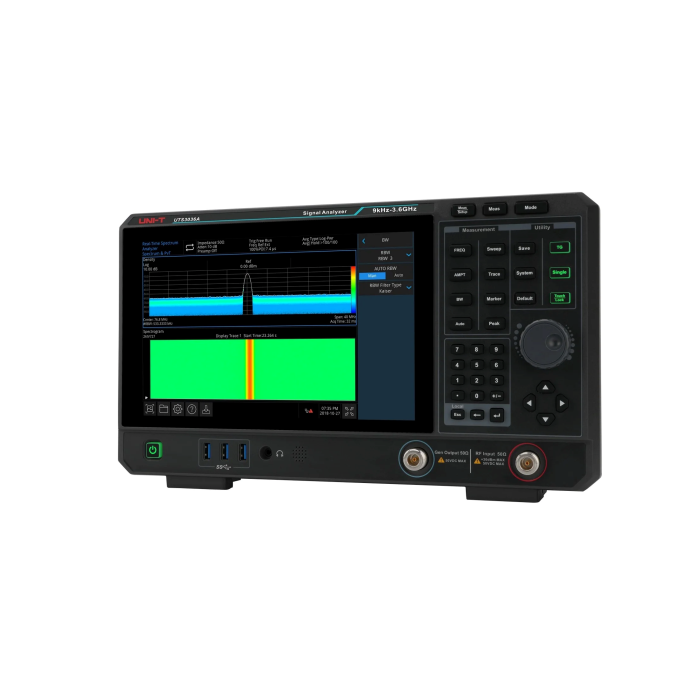

Signal Analyzers, UTS3060A 6.0GHz Performance-Series Signal Analyzer
UTS3000A Series, Signal Analysers:
- Frequency range: 9 kHz to 8.4 GHz.
- DANL: -165 dBm (typical).
- Phase noise is typically less than -100 dBc/Hz at 10 kHz offset.
- Scan up to 40,001 points.
- Minimum resolution bandwidth (RBW): 1 Hz.
- Support sophisticated one-key measurements (optional).
- EMI Analysis Function (Optional).
- Analog demodulation analysis support is available (optional).
- Support Digital Demodulation Analysis (optional).
- Support real-time spectrum analysis.
- Support I/Q analysis (optional).
- Support Vector Network Analysis.
- 10.1-inch high-definition capacitive touchscreen display.
Specifications:
- UTS3000A Series, Signal Analysers.
- Frequency Range 9kHz–6.0GHz.
- RBW 1Hz-10MHz, step with 1-3-10.
- DANL -165dBm/Hz.
- Traces 6.
- Scan Points 40,001.
- Tracking Generator Included.
- Display Size (in) 10.1in.
- Touchscreen Yes.
- Warranty 3 years.
- Product Dimensions (L x W x H) 15 in x 9 in x 5 in.
- Product Weight 10 lb.
- Certifications CE/cETLus/UKCA.
| SKU | UTS3060A |
|---|---|
| Brand | UNI-T |
