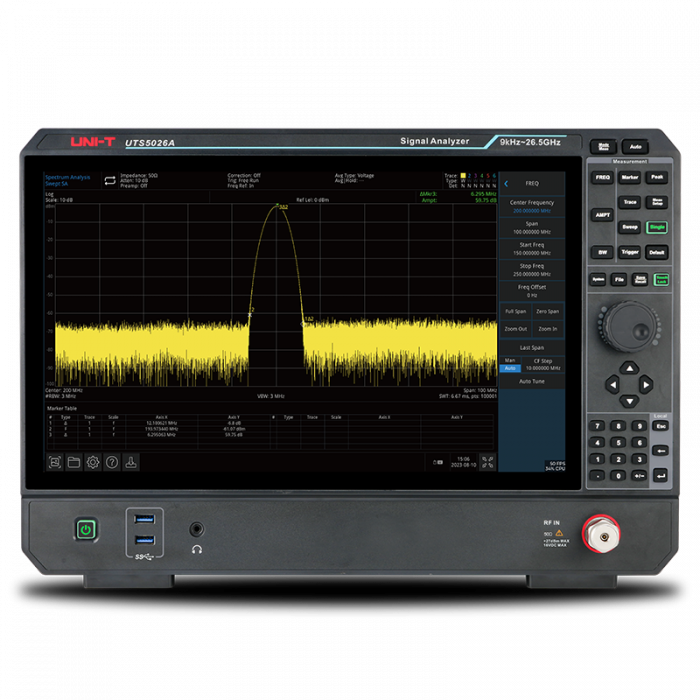

Signal Analyzers, UTS5013A: 13.6 GHz, 1Hz-8 MHz, -163 dBm
UTS5000A Series, Signal Analysers:
- Range of frequencies: 9 kHz to 26.5 GHz.
- DANL: -163 dBm (average).
- Phase noise: less than -107 dBc/Hz at 10 kHz offset.
- Up to 100001 points can be scanned.
- 1 Hz is the minimum resolution bandwidth (RBW).
- Allow for sophisticated one-key measuring (optional).
- Function for EMI Analysis (optional).
- Analogue Demodulation Analysis Support (optional).
- Encourage the analysis of digital demodulation (optional).
- I/Q Analysis Support (optional).
- Configuration: 15.6-inch thin-film transistor LCD display with high definition, 1920x1080.
Specifications:
- UTS5000A Series, Signal Analysers.
- Frequency range 9kHz-13.6 GHz.
- Frequency resolution 0.001Hz.
- Sweep width range 0Hz,10Hz-13.6GHz.
- Sweep accuracy Swept: ± [0.25%×span horizontal resolution].
- Sweep accuracy FFT: ± [0.10%×span horizontal resolution].
- Sweep time Span ＝ 0 Hz, 1 μs to 6000 s; Span ≥ 10 Hz, 1 ms to 4000 s.
- Advanced Measurement Power Suite Measurement, Nonlinear Measurement, Spectrum Monitoring.
- Modulation Analysis AM Measurement, FM Measurement.
- Power 100-240V AC (±10%), 50Hz/60Hz, 100 to 120 VAC (Fluctuations±10%) 400 Hz.
- Display 15.6'TFT LCD (1920x1080) touch.
- Product size(W×H×D) 445mm×311mm×195mm.
- Product net weight 11kg.
| SKU | UTS5013A |
|---|---|
| Brand | UNI-T |
