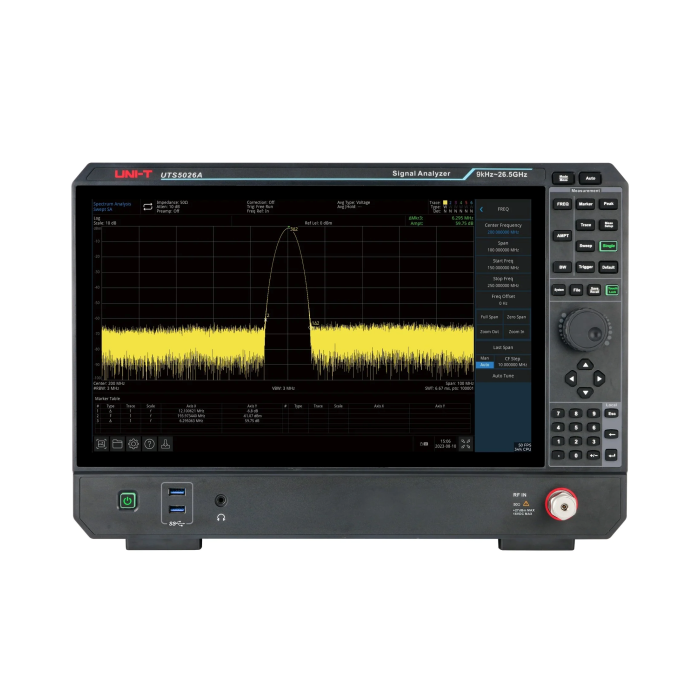

Signal Analyzers, UTS5026A 26.5GHz Performance-Series Signal Analyzer
UTS5000A Series, Signal Analysers:
- Frequency range: 9 kHz to 26.5 GHz.
- DANL = -163 dBm (average value).
- Phase noise is typically less than -107 dBc/Hz at 10 kHz offset.
- Scan up to 100001 points.
- Minimum resolution bandwidth (RBW): 1 Hz.
- Support sophisticated one-key measurements (optional).
- EMI Analysis Function (Optional).
- Analog demodulation analysis support is available (optional).
- Support Digital Demodulation Analysis (optional).
- Support I/Q analysis (optional).
- Configuration: 15.6-inch 1920x1080 high-definition thin film transistor LCD display.
Specifications:
- UTS5000A Series, Signal Analysers.
- Frequency Range 9kHz–26.5GHz.
- RBW 1Hz–3MHz (10% step), 4, 5, 6, 8MHz
- DANL -163dBm/Hz.
- Traces 6.
- Scan Points 100,001.
- Tracking Generator Not Available.
- Display Size (in) 15.6in.
- Touchscreen Yes.
- Warranty 3 years.
- Product Dimensions (L x W x H) 15 in x 9 in x 5 in.
- Product Weight 25 lb.
- Certifications CE/cETLus/UKCA.
| SKU | UTS5026A |
|---|---|
| Brand | UNI-T |
