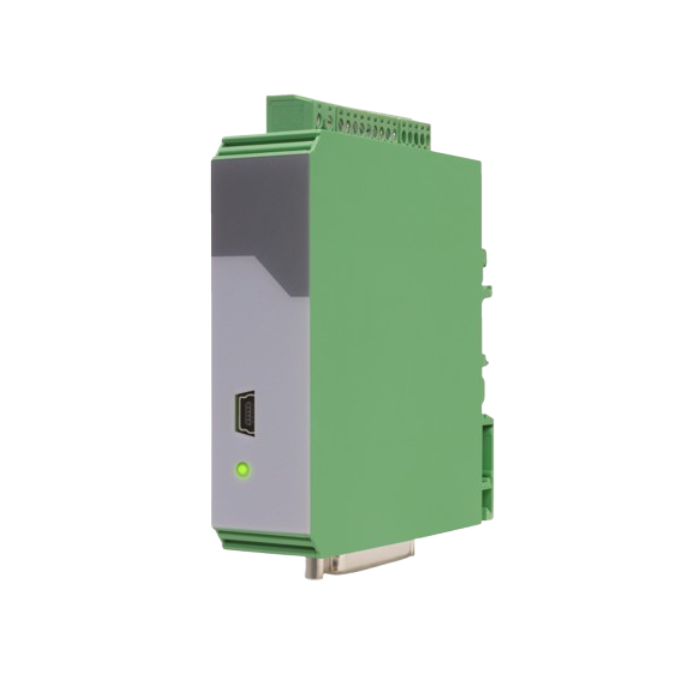

Signal Converter Transonic - Parallel PP210
Start and Stop Converters for Input Signals:
- The PP210 Transonic/Parallel Signal Converter is designed to convert transonic start-stop signals into parallel signals (binary, grey code, and BCD formats).
- It can change the input for incremental signals and SSI absolute values.
Signal Converter Transonic/Parallel:
- Start-stop interface for magneto strictive sensors and absolute transducers.
- SSI input in the following formats: DATA +, DATA-, CLOCK +, CLOCK-, up to 32 bits.
- There are three control inputs (hold) for PNP signals (10–30 VDC).
- Pulse inputs A, B [HTL], A, /A, B, /B [RS422, HTL].
- The input frequency is up to 1 MHz.
- Push-pull 25-bit parallel output in BCD, binary, or grey code format.
- Power supply: 18–30 VDC.
- Compact housing that may be mounted on a 35 mm top-hat rail (per EN 60715).
| Brand | Motrona |
|---|
