SIGNAL TEMPERATURE CONVERTER WITH RS485
Specifications:

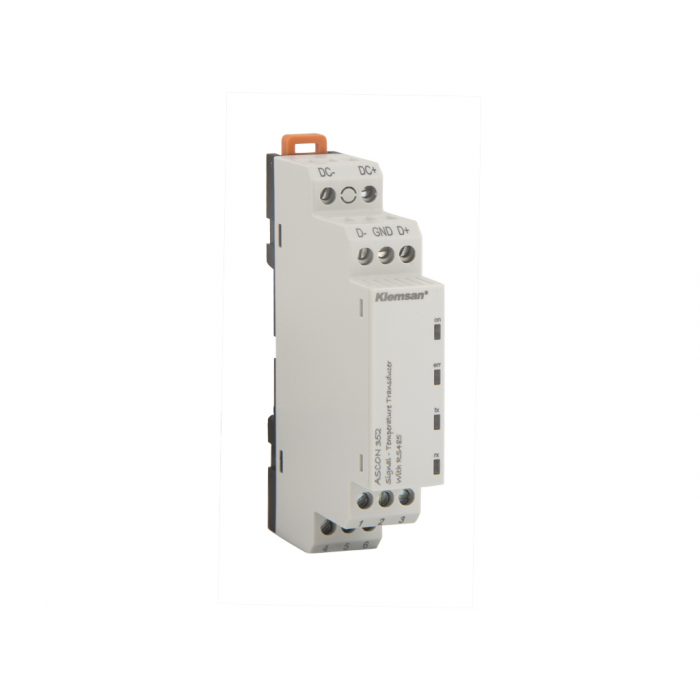

- ASCON 352 Signal temperature converter (with RS485)
- Casing Width (mm): 17,5
- Connections: Screw terminal
- Isolation: 3 way - 1,5 kV RMS
- Measurement Error: < 0.1% (Full Scale)
- Temperature Coefficient: ≤ 0.02% / °C
- Response Time: < 10ms
- Sensor Failure Indication: Voltage output mode: short circuit
- Protection class: IP20
- Mounting type: Rail mounted
Technical Data:
Input:
- Sensor Type: Mv, V, mA - PT100(2, 3, 4wire) - Thermocouple (J, K, E, R, S)
- Connection Method: 2 wire or 3 wire or 4 wire.
- Temperature Measuring Range: -150°C +800°C Configurable
- Sensor Excitation Current: <0.5mA
Output:
- Signal: RS485
- Linear Range: 3.6mA - 23.6mA
Supply Voltage:
- DC: 11-30V
Ambient Conditions:
- Operating Temperature: -20°C +60°C
- Storing Temperature: -40°C +75°C
- Relative Humidity (No Condensation): Maks. 95%
EMC-EMI:
- Radiated Emissions Test, 61000-6-2/AC: 2012, 61000-6-4: 2007/A1: 2011: Any
| Brand | Klemsan |
|---|
