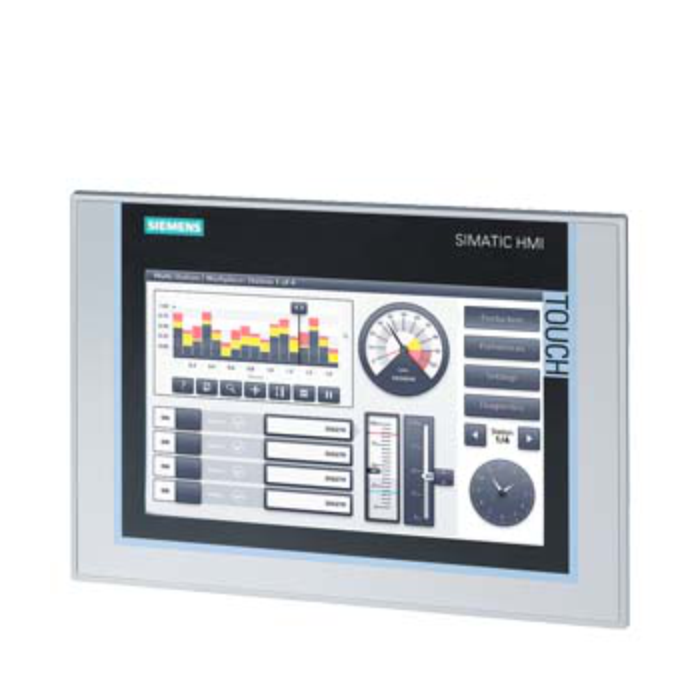

SIMATIC HMI TP900 Comfort
Pricing available on request
Description:
- A high-performance 9" HMI designed for demanding industrial environments.
- Featuring a vibrant widescreen display, multi-protocol connectivity (PROFINET, PROFIBUS, MODBUS, EtherNet/IP), and robust diagnostics, it supports seamless integration with Siemens and third-party PLCs.
- Certified for hazardous zones and marine applications, the TP900 is ideal for modernizing legacy systems while ensuring long-term reliability and compliance.
Specifications:
- Display: 9" TFT widescreen, 800×480 resolution, 16 million colours.
- Touch Interface: Analog-resistive touchscreen.
- Voltage Range: 24 VDC nominal (19.2–28.8 VDC permissible).
- Interfaces:
- 2× Ethernet (PROFINET with integrated switch).
- 1× RS422/485.
- 2× USB 2.0.
- MPI/PROFIBUS DP.
- Memory: 12 MB configuration memory, supports SD/MMC/USB storage.
- OS: Windows CE 6.0.
- Software Compatibility: Configurable via WinCC Comfort V11 and up.
- Environmental Ratings:
- Front: IP65 / NEMA 4/4X.
- Rear: IP20.
- ATEX Zone 2/22, IECEx Zone 2/22, FM Class I Div 2.
- Mounting: Landscape or portrait, max tilt 35° without ventilation.
- Certifications: CE, UL, RCM, KC, ABS, DNV, LRS, NK, BV.
- Integration Notes:
- PLC Compatibility: S7-1200/1500/300/400, LOGO! WinAC, Allen Bradley, Mitsubishi, Modicon.
- Protocols Supported: PROFINET IO, EtherNet/IP, MODBUS, TCP/IP, SNMP, HTTPS, OPC UA.
- Diagnostics: S7-readable, supports system diagnostics view.
- Archiving: CSV, TXT, RDB formats via USB, SD, or Ethernet.
- Security: 50 users, 32 rights, SIMATIC Logon support.
| SKU | 6AV2124-0JC01-0AX0 |
|---|---|
| Brand | Non Brands |
