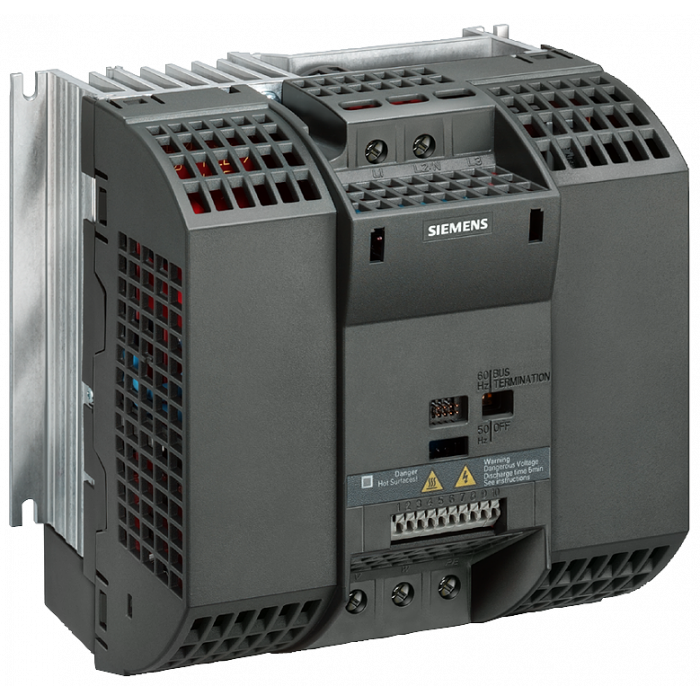

SINAMICS G110, 1 AC 200-240 V, 2,20 kW, IP20 / UL open type, FSC, B, 6SL3211-0AB22-2AB1

****spare part**** SINAMICS G110-CPM110 AC Drive, with integrated filter A 200-240 V 1 AC+10/-10% 47-63 Hz RS-485 interface (USS protocol) CT: 2.2 kW; VT: 2.2 kW CT overload: 150% 60 s 181x 184x 152 (HxWxD) degree of protection IP20 ambient temperature -10+50 °C without BOP without analog input SINAMICS G110 standard inverter is a versatile frequency inverter for small outputs, for applications with pumps and fans, as a drive in various industry sectors, as well as conveyor applications, etc. SINAMICS G110 is an inverter with basic functions for a wide range of industrial drive applications with variable speeds. It is the ideal price-conscious inverter solution in the lower power range of the SINAMICS product family. ´The G110 stands out, among others, through easy installation, parameterization and commissioning. An easy cable connection and a robust EMC design are also advantageous. Further, an extensive parameter range enables configurations for a wide range of applications. The SINAMICS G110 standard inverters are equipped with a control module and a power module, providing the inverter in the CPM 110 version (Controlled Power Module) with a compact and efficient design. Further, they operate with the latest IGBT technology and digital microprocessor control. The SINAMICS G110 is available in the frame sizes FSA to FSC and in a performance range between 0.12 kW and 3 kW. Further, the G110 inverter operates with voltage-frequency control from 200 V to 240 V on single-phase line supply systems. The following line-side performance components are available for the inverters, for example, an EMC filter, line reactors, fuses and a circuit breaker. Further, an operator panel, assembly accessories and the commissioning tool are provided. SINAMICS – the integrated drive family for every field of application.
