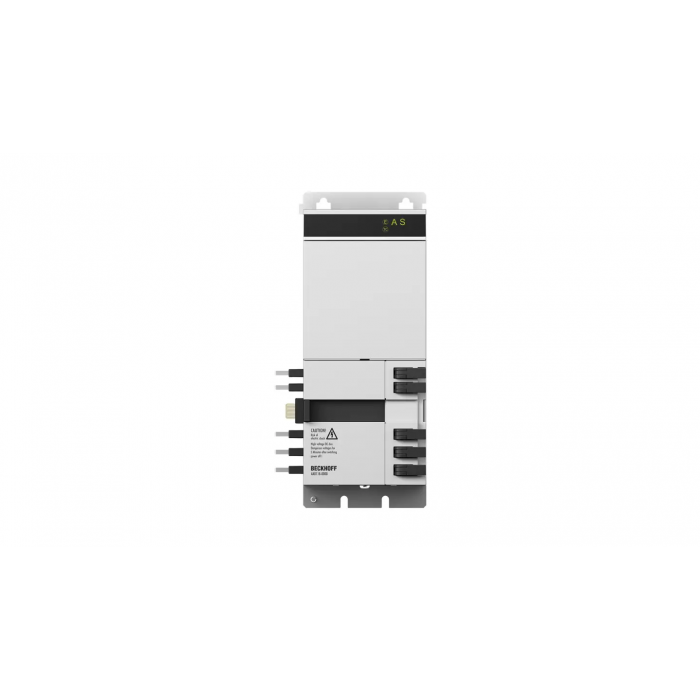

Single-axis module AX8118-0100-0000
An axis module contains the DC link and the inverter for supplying the motor. Depending on the required number of axes, the axis modules are attached to the power supply module to form the multi-axis servo system. Axis modules with different ratings can be combined in order to enable an optimized design of the individual axes.
Function: axis module with TwinSAFE Logic
DC link voltage: max. 848 V DC
Rated output current (channel): 18 A
Peak output current (channel): 40 A
Feedback: OCT
System bus: EtherCAT
Drive profile: CiA402 according to IEC 61800-7-201 (CoE)
Safe stop functions: Safe Torque Off (STO), Safe Stop 1 (SS1)
Safety standard: EN ISO 13849-1: 2015 (Cat 4, PL e), EN 61508: 2010 (SIL 3) and EN 62061: 2005 + A1: 2013/A2: 2015 (SIL CL3)
Ambient temperature (operation): 0…+40 °C, up to +55 °C with power reduction (see documentation)
Approvals/markings: CE, cULus, EAC
Protection rating: IP20
Width: 90 mm
Height without connectors: 230 mm
Depth without connectors: 192 mm
Width: 90 mm
| SKU | AX8118-0100-0000 |
|---|
