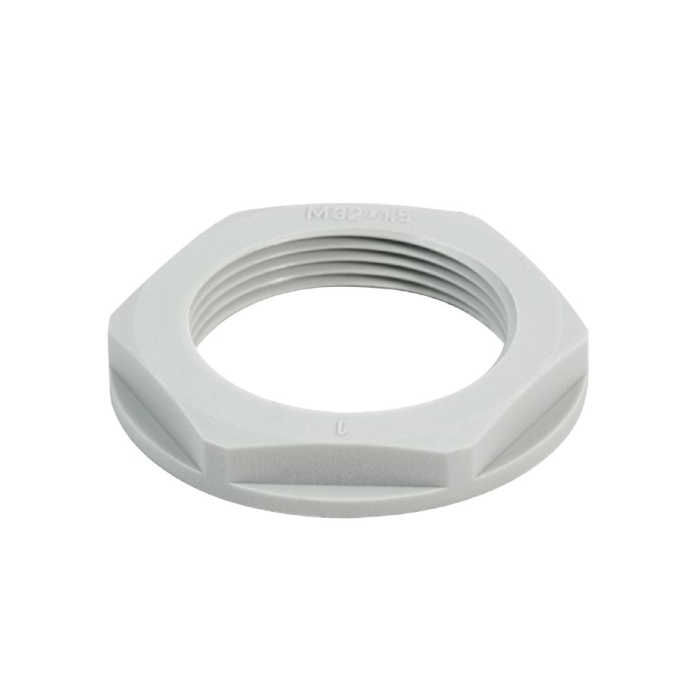

SKMU M40 - K GR

ZAR 49.49
Out of stock
SKU
1772490000

Description:

  • The product line is completed by plugs, pressure compensation components, adaptors, and matching accessories like locknuts, sealing rings, flat washers, and earthing rings, in addition to cable glands for a variety of applications.
  • If there isn't a threaded hole accessible, use it to secure cable glands and accessories.
  • Featuring a circumferential collar to shield the substrate from harm while being installed.

Specifications:

  • Version: SKMU PA (plastic locknut), Locknut.
  • Quantity: 50.
  • Height: 7 mm.
  • Operating temperature: -40 °C...100 °C.
  • AF size: 50 mm.
  • Cable glands: M 40.
  • External thread: M 40.
  • No Halogen.
  • Internal thread: M 40.
  • Length of thread: 7 mm.
  • Material: Polyamide 6 (PA6 - GF30).
  • O.D.: 57.75 mm.
  • Pitch of thread: 1.5 mm.
  • No Silicone.
  • Thickness: 7 mm.
  • UL 94 flammability rating: HB.
More Information
Brand Weidmuller
