SKMU M63 - K GR
SKMU M63 - K GR:

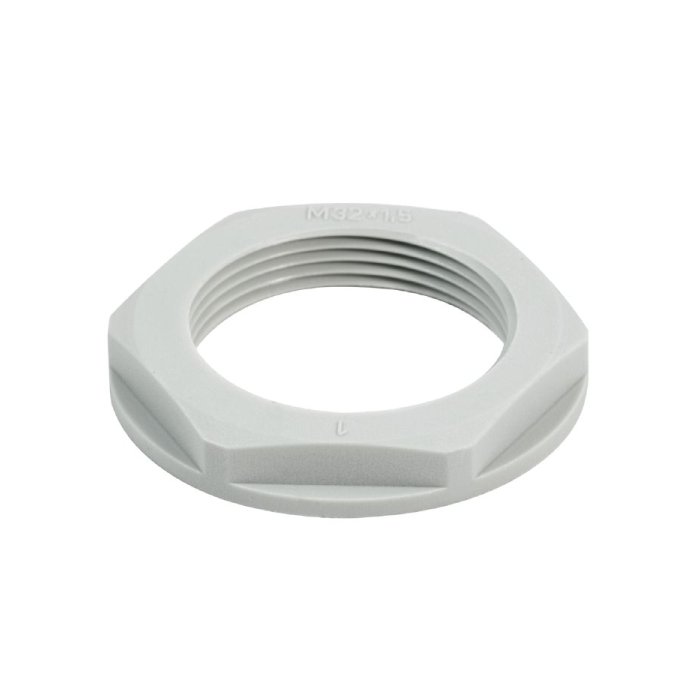

- Plastic locknut, M 63, 8 mm, Polyamide 6 (PA6 - GF30), SKMU PA.
- In addition to cable glands for a variety of applications, the product line includes plugs, pressure compensation components, adaptors, and associated accessories such as locknuts, sealing rings, flat washers, and earthing rings.
Specifications dimensions and weights:
- Height: 8 mm.
- Height (inches): 0.315 inch.
- Net weight: 4.1 g.
Temperatures:
- Operating temperature: -40 °C...100 °C.
Environmental Product Compliance:
- REACH SVHC: /.
General information:
- AF size 1: 75 mm.
- Cable glands: M 63.
- External thread: M 63.
- Halogen: No.
- Internal thread: M 63.
- Length of thread: 8 mm.
- Material: Polyamid 6 (PA6 - GF30).
- O.D.: 116.55 mm.
- Operating temperature range, max.: 100 °C.
- Operating temperature range, min.: -40 °C.
- Pitch of thread: 1.5 mm.
- Silicone: No.
- Thickness: 8 mm.
- UL 94 flammability rating: HB.
| Brand | Weidmuller |
|---|
