SKMU PG36-K GR
SKMU PG36-K GR:

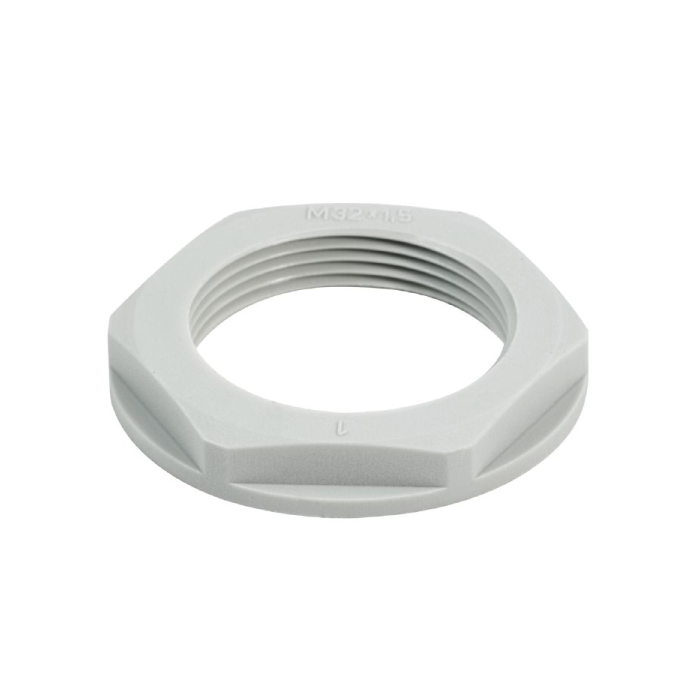

- SKMU PA (plastic locknut), Locknut, PG 36, 8 mm, Polyamide 6 (PA6 - GF30).
- In addition to cable glands for a variety of applications, the product line includes plugs, pressure compensation components, adaptors, and associated accessories such as locknuts, sealing rings, flat washers, and earthing rings.
Specifications dimensions and weights:
- Height: 8 mm.
- Height (inches): 0.315 inch.
- Net weight: 12.32 g.
Temperatures:
- Operating temperature: -40 °C - 100 °C.
Environmental Product Compliance:
- REACH SVHC: /.
General information:
- AF size 1: 60 mm.
- Cable glands: PG 36.
- External thread: PG 36.
- Halogen: No.
- Internal thread: PG 36.
- Length of thread: 8 mm.
- Material: Polyamide 6 (PA6 - GF30).
- O.D.: 69.3 mm.
- Operating temperature range, max.: 100 °C.
- Operating temperature range, min.: -40 °C.
- Pitch of thread: 1.59 mm.
- Silicone: No.
- Thickness: 8 mm.
- UL 94 flammability rating: HB.
| Brand | Weidmuller |
|---|
