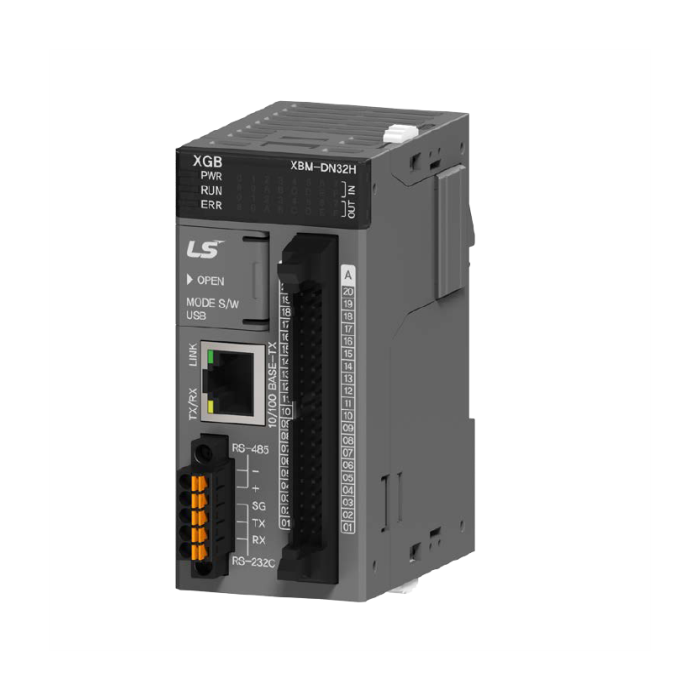

Main Unit, DC24V power supply, DC24V input 16 point, Transistor output 16 point (sink)
Description:
- A dependable and adaptable main unit for industrial automation applications is the LS Electrical XBM-DN32H. It has 16 DC input points and 16 transistor output points (sink type), and it runs on a DC24V power supply.
- With its reliable performance and smooth interaction with other automation systems, this module is perfect for monitoring and regulating a variety of industrial operations.
- Because of its small size and integrated protection measures, it can be easily installed in conventional control panels and operates safely and dependably even in harsh settings.
- The XBM-DN32H is a component of the extensive automation product line from LS Electrical, which is intended to improve industrial settings' efficiency and production.
Specifications:
- Program control method: Cyclic execution of stored program, Time-driven interrupt, Process-driven interrupt.
- I/O control method: Batch processing by simultaneous scan (Refresh method), Directed by program instruction.
- Program language: Ladder Diagram, Instruction List.
- Number of instructions:
- Basic: About 30.
- Application: About 740.
- Processing speed (Basic instruction): 83ns/step.
- Program capacity: 20Kstep.
- Max. I/O points: 256 points (Main + Expansion 7 stages).
- Total program: 128.
- Initial task:
- Initial task: 1
- Cyclic task: Max 16.
- I/O task: Max 8.
- Internal device task: Max 16.
- High Speed Counter task: Max 4.
- Operation mode: RUN, STOP, DEBUG.
- Self-diagnosis function: Detects errors of scan time, memory, I/O and power supply.
- Program port: USB 1 channel.
- Back-up method: Latch area setting in basic parameter.
- Internal consumption current: 430mA.
- Weight: 134g.
| Brand | LS Electric |
|---|
