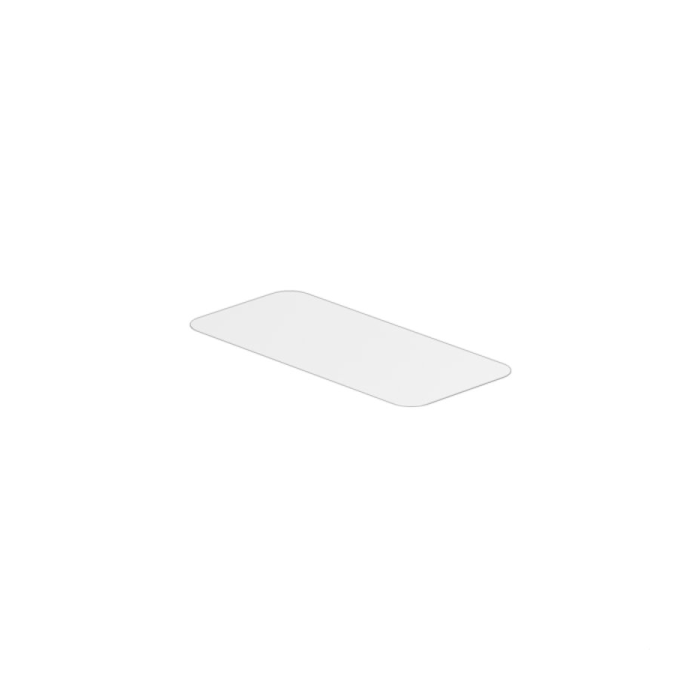

SM 27/12.5 MM WS
SM 27/12.5 MM WS:
- SM prevents improper operations.
- Multi-Mark device markers are compatible with marking materials from many manufacturers.
- Wherever they are utilized, they ensure that all components, such as control and signalling devices from various suppliers, are properly assigned.
Your advantages with multi-Mark:
- "Different materials for different needs."
- works with a wide range of manufacturers' equipment.
- Device markings with a familiar appearance.
Specifications dimensions and weights:
- Depth: 0.1 mm.
- Depth (inches): 0.004 inch.
- Height: 12.5 mm.
- Height (inches): 0.492 inch.
- Width: 27 mm.
- Width (inches): 1.063 inch.
- Net weight: 0.115 g.
Temperatures:
- Operating temperature range: -40 - 120 °C.
Environmental Product Compliance:
- REACH SVHC: /.
General data:
- Adhesive: Acrylate adhesive.
- Approval acc. to UL 969: Yes.
- Colour: White.
- compatible printer: THM MULTIMARK, THM MULTIMARK PLUS.
- Halogen: No.
- Material: Polyester.
- Number per roll: 1000.
- Operating temperature range: -40 - 120 °C.
- Operating temperature range, max.: 120 °C.
- Operating temperature range, min.: -40 °C.
- UL 94 flammability rating: V-0.
- Version: halogen-free, Self-adhesive.
- Width: 27 mm.
Device markers:
- Halogen: No.
| Brand | Weidmuller |
|---|
