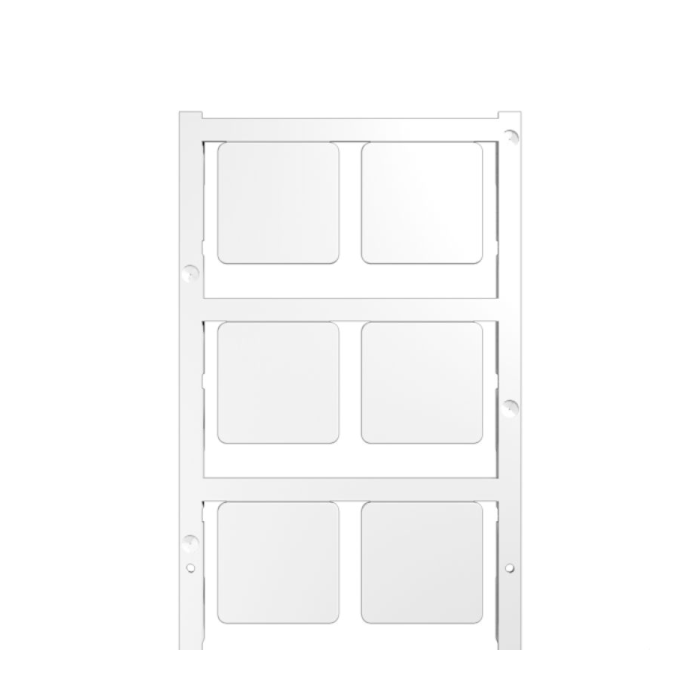

SM 27/27 K MC NE WS
Description:
- A multi-card marker called SM is used to identify control and signalling equipment.
- The sticky tape that is already attached to the carriers is used to attach the tags, or they can be clipped into them.
- Plotter marking systems or Print Jet CONNECT can be used to make customized tags.
- Tags can be readily created by users to meet their needs.
- There is no need to have expensive standard tags in stock.
- Exceptional printing quality when utilizing the Print Jet in place of engraving.
- We advise using the ETO SM protection film in cases of high demand.
- Holders can be used for the 22-mm or 30-mm-diameter pushbuttons from Siemens, ABB, Moeller and Télémécanique.
Specifications:
- Version: Switch Mark, Device markers.
- Quantity: 60.
- Depth: 1 mm.
- Height: 27 mm.
- Width: 27 mm.
- Operating temperature range: -40...100 °C.
- Colour: white.
- No Halogen.
- Material: Polyamide 66.
- Material colour according to resistance code: 9.
- Number of markers per combination: 1 multi-Card = Device markers.
- UL 94 flammability rating: V-2.
| Brand | Weidmuller |
|---|
