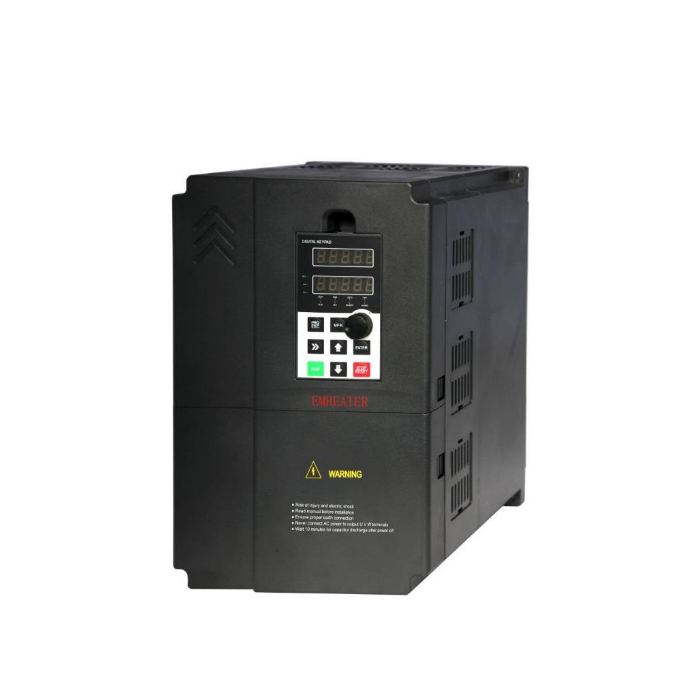

3-Phase 380V 110KW 210A Double Line Screen Solar Inverter
EM15 Series Solar Inverter Features:
- A >99% efficient MPPT algorithm is used to track the maximum power point of solar cells quickly.
- It is possible to track the operating point voltage of solar batteries using manually or automatically MPPT.
- For use in all weather conditions, there are manual and automatic modes.
- Give up to the fact that "sunset sleep and sunrise work."
- 35 distinct categories of protective roles. enables the power-up process's automatic short circuit detection.
- Auto sleep, low frequency protection, pump dry protection, overload protection, and other features are among them.
- Total defence against overload, undervoltage, overcurrent, dry pumping, short circuit, and short circuit.
- Output frequency range: V/F (0~3000HZ); vector control (0~300HZ).
- Three seconds at 180% of the rated current and sixty seconds at 150% of the rated current are the overload capabilities.
- The speed accuracy is ±0.5% (SVC) and ±0.02% (VC).
- Setting for input pulses: 0–100 kHz.
- Remote control, terminal control, analogue control, and RS232/RS485 interface capabilities are all included.
Specifications:
- Rated power/KW: 110 Min.
- DC voltage/V: 280 Max.
- DC voltage/V: 750.
- Recommended MPPT range /V: 350~750.
- Output current: 210 A.
Brand | EMHEATER |
---|
