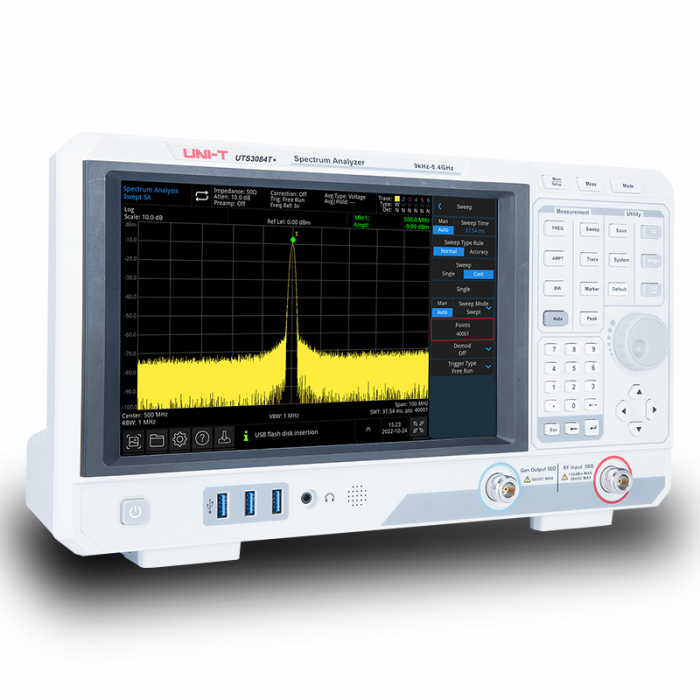

Spectrum/Signal Analyzers, UTS3036T+: 3.6 GHz, 1Hz-3 MHz, -161 dBm
UTS3000T+ Series, Spectrum/Signal Analysers:
- The frequency measurement ranges from 9 kHz to 1.5 GHz, 3.2 GHz, 3.6 GHz, and 8.4 GHz.
- Typically, the average noise level on a display can be as low as -161 dBm.
- Phase noise <-98 dBc/Hz (the usual value is off at 10 kHz).
- Accuracy of full amplitude <0.7 dB.
- 1 Hz is the minimum resolution bandwidth (RBW).
- Measurement of advanced function one key (optional).
- EMI function for pre-compliance analysis (optional).
- Analog demodulation analysis support is optional.
- Support the source output tracking feature.
- 10.1-inch capacitive touch screen, 1280 x 800 HD.
- An HD multi-touch screen for speedy operation HD screen with multiple touches for speedy operation.
- High sensitivity for testing a weaker signal.
- Higher frequency resolution is provided by 40,001 sweep points.
Specifications:
- UTS3000T+ Series, Spectrum/Signal Analysers.
- Frequency range 9 kHz-3.6 GHz.
- Frequency resolution 1Hz.
- Sweep accuracy Swept ± [0.25%*Span Span/(Points-1)], FFT ± [0.10%*Span Span/(Points-1)].
- Sweep time 1 ms to 4000 s (span≠ 0), 1 μs to 4000 s (span= 0).
- Sweep mode Swept, FFT.
- Marker mode Normal, Delta Δ, Fixed.
- Marker function Marker Noise, Band Power, Band Density, NdB, Counter.
- Bandwidth accuracy (–3dB) < 5% (nominal).
- Power 100-240V AC, 50Hz/60Hz, 100 to 120 VAC (Fluctuations±10%),400 Hz.
- Display 10.1 'TFT LCD (1280x800) touch.
- Product size(W×H×D) 378 mm×218 mm×120 mm.
- Product net weight 4.55kg.
| SKU | UTS3036T-Plus |
|---|---|
| Brand | UNI-T |
