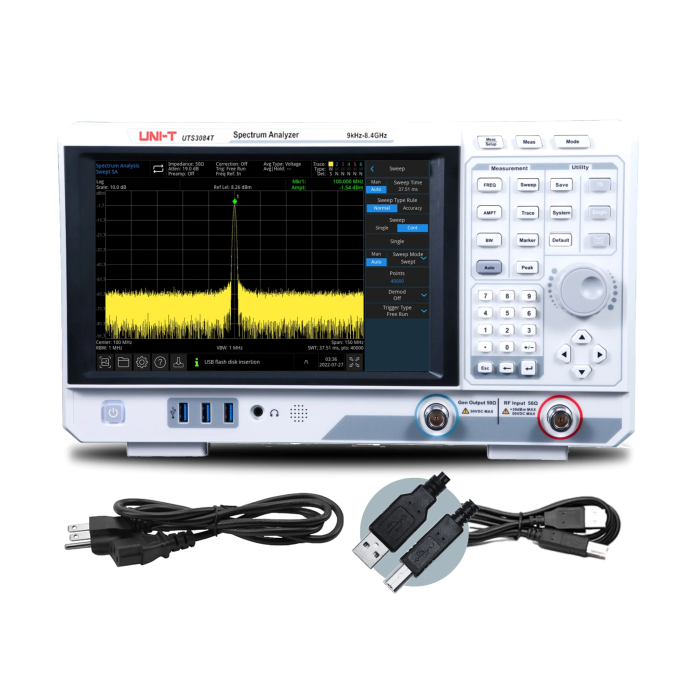

Spectrum/Signal Analyzers, UTS3084T 8.4GHz Performance-Series Spectrum Analyzer with Tracking Generator
UTS3000B Series, Spectrum/Signal Analysers:
- Frequency measurement range: 9 kHz-2.1 GHz, 9 kHz-3.6 GHz, and 9 kHz-8.4 GHz.
- The display average noise level can be as low as -161 dBm/Hz (typical value).
- Phase noise is less than -98 dBc/Hz (offset 10 kHz is common).
- Full amplitude accuracy is <0.7 db.
- There are up to 40,001 scanning spots.
- Minimum resolution bandwidth (RBW): 1 Hz.
- Advanced function: one key measurement (optional).
- The EMI pre-compliance analysis function is optional.
- Analog demodulation analysis support is optional.
- Support for digital demodulation analysis (optional).
- Support the tracking source output function (optional).
- 10.1-inch HD capacitive touch screen with a resolution of 1280 x 800.
- Provide USB/LAN interfaces and support the SCPI protocol.
Specifications:
- UTS3000B Series, Spectrum/Signal Analysers.
- Frequency Range 9kHz–8.4GHz.
- RBW 1Hz-3MHz
- DANL -161dBm/Hz.
- Traces 6.
- Scan Points 40,001.
- Tracking Generator Included.
- Display Size (in) 10.1in.
- Touchscreen Yes.
- Warranty 3 years.
- Product Dimensions (L x W x H) 15 in x 9 in x 5 in.
- Product Weight 10 lb.
- Certifications CE/cETLus/UKCA.
| SKU | UTS3084T |
|---|---|
| Brand | UNI-T |
