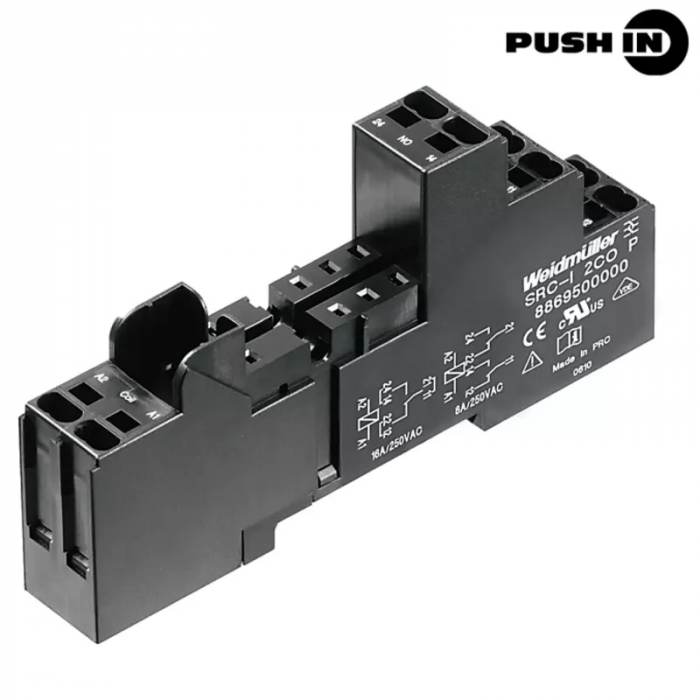

Dimensions and weights:

• Depth: 48.3 mm.
• Depth (inches): 1.902 inch.
• Height: 98 mm.
• Height (inches): 3.858 inch.
• Width: 15.8 mm.
• Width (inches): 0.622 inch.
• Net weight: 39.8 g.

Temperatures:

• Storage temperature: -40 °C...70 °C.
• Operating temperature: -40 °C...70 °C.
• Humidity: 40 °C / 93 % rel. humidity, no condensation.

Environmental Product Compliance:

• REACH SVHC: /.

Rated data UL:

• Certificate No. (cURus): E223759.

Load side:

• Rated switching voltage: 250 V AC.
• Continuous current: 8 A @ 2CO; 12 A @ 1CO without bridged output wire connections; 16 A @ 1CO with bridged output wire connections.
• Max. switching voltage, AC: 250 V.
• Contact type: 2 CO contact.

General data:

• Rail: TS 35.
• Colour: black.
• UL 94 flammability rating: V-0.

Insulation coordination:

• Rated voltage: 250 V.
• Pollution severity: 2.
• Surge voltage category: III.
• Insulating material group: IIIa.
• Clearance and creepage distances for control side - load side: ≥ 10 mm.
• Dielectric strength for control side - load side: 5 kVeff / 1 min.
• Type of isolation at input and output: reinforced insulation.
• Dielectric strength of neighbouring contacts: 2.5 kVeff / 1 Min.
• Type of isolation at neighbouring contacts: Functional insulation.
• Dielectric strength of open contact: 1 kVeff / 1 min.
• Protection degree: IP20.

Further details of approvals / standards:

• Certificate No. (CSA): 249409-2295474.
• Certificate No. (cURus): E223759.

Connection data:

• Wire connection method: PUSH IN.
• Stripping length, rated connection: 12 mm.
• Tightening torque, min.: 1.5 Nm.
• Tightening torque, max.: 0.75 Nm.
• Clamping range, rated connection: 1.5 mm².
• Clamping range, min.: 0.75 mm².
• Clamping range, max.: 1.5 mm².
• Wire cross-section, solid, min.: 0.75 mm².
• Wire cross-section, solid, max.: 1.5 mm².
• Wire connection cross section, finely stranded, min.: 0.75 mm².
• Wire connection cross section, finely stranded, max.: 1.5 mm².
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: 0.75 mm².
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: 0.75 mm².
• Conductor cross-section, flexible, AEH (DIN 46228-1), min.: 0.75 mm².
• Conductor cross-section, flexible, AEH (DIN 46228-1), max.: 1 mm².
• Blade size: 0.6 x 3.5 mm.
• Pitch in mm (P): 5 mm.
