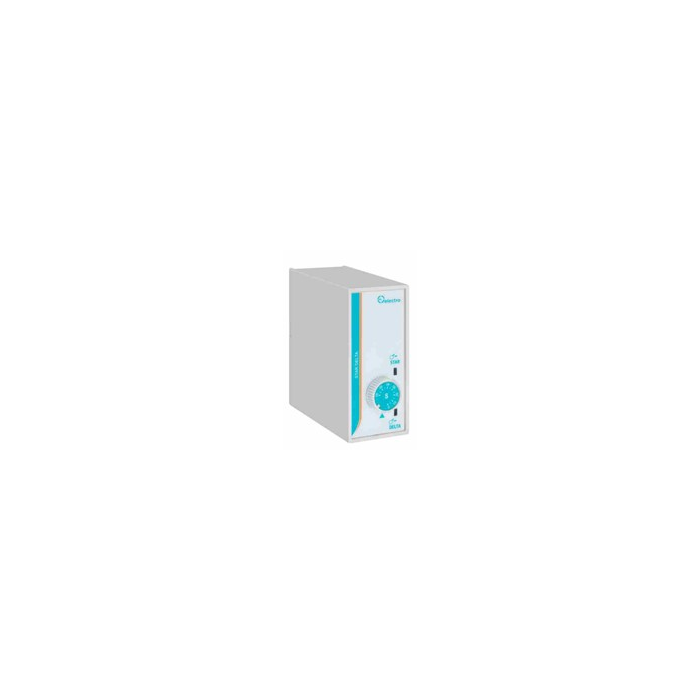

STAR-DELTA TIMER 230VAC, TIME RANGE: 180 SECONDS

ZAR 756.05
Out of stock
SKU
TNE180S230A

Delta Star timer:

  • Installing the Electro 11 pin plug-in series of control and timing devices is simple and straightforward since they are designed to fit into a conventional 11 pin base.
  • The purpose of the unit is to allow star-delta starters to securely switch between star and delta.
  • The front potentiometer can be used to change the star-make period.
  • A predetermined 80 ms pause period stops contractors from working concurrently.

Features:

  • 10A SPDT output with failsafe functionality.
  • Recurring deviation: less than 1%.
  • Oscillator time circuit control.
  • For both ON and OFF ranges, multi-range.
  • Time setting adjustable potentiometer.
  • LED signal for DELTA and STAR outputs.

Specifications:

  • TIME RANGE: 30s, 60s, 180s
  • DESCRIPTION: Star-delta timer
  • CONTACT: 10A SPDT
  • RATED VOLTAGE: 250V
  • MECHANICAL LIFE: 10x106 cycles
  • PROTECTION INDEX IP: IP 20
  • OPERATING TEMPERATURE: -10 to + 50°C
  • STORAGE TEMPERATURE: -50 to + 85°C
  • DIMENSIONS (MM): (H) 92 x (W) 36 x (D) 64
More Information
Brand Electrodev
